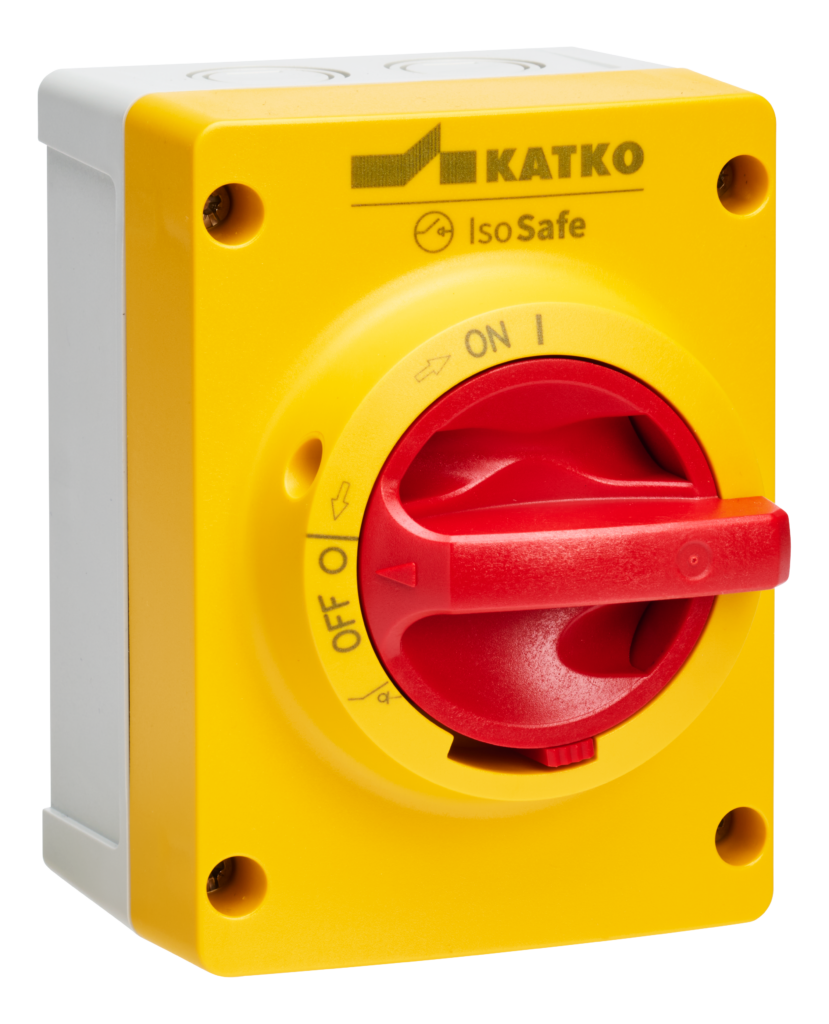

KEM 316 YR M2EMC 2XM25MEMC

IP66; Enclosure types M2, M3, M4, MF11, MF01, MF02 MF03, MF04
Self-extinguishing material
Wide operating temperature range
Padlockable with 3 locks
Door interlock with defeat mechanism
Excellent insulating properties
Good UV resistance
Good resistance against many chemicals
Tested according to IEC 60947-3
Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.

Electromagnetic compatibility ensures safe operation in environments with electromagnetic disturbance
Tested according to EMC EN 61000-6-3:2007+A1(2011) with EMC- glands shielded power cable
IP66
Available in polycarbonate up to 125 A, aluminium up to 160 A and sheet steel up to 630 A
Padlockable
EMC cable glands included
Door interlock with defeat mechanism
Tested according to IEC 60947-3
Available in 3-, 4-, 6- or 8-poles
Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.

Product details

SKU	KEM 316 YR M2EMC 2XM25MEMC
AC-21 400/415 V (A)	25 A
AC-21 690 V (A)	25 A
AC-22 400/415 V (A)	16 A
AC-22 690 V (A)	16 A
AC-23 400/415 V (A/kW)	16 A / 7.5 kW
AC-23 690 V (A/kW)	16 A / 11 kW
Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size	1.5-16
Cable Gland	2xM25
Color	Yellow / Red
EAN	6419410329252
Enclosure	M2
Enclosure Type	Polycarbonate
IP Rating	66
Number of Poles	3
Operation	Front-operated
Switch type	Load Break Switch
Weight (kg)	0.6
