GTIN
Rated operational current AC-23A 415V (A)
Enclosure type
Enclosure
Technical data
Depth
81 mm
EMC
false
Enclosure
M2S (96.4 x 130.4 x 81 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
GTIN
6419410304396
Height
130.4 mm
IP rating
IP66
Long product name
4-pole, Polycarbonate enclosure; W96.4 x H130.4 x D81
Max. term. torque (Nm)
1.8
Mech. endurance (no. of oper.)
20000
Net weight
0.3236 kg
Nom. values w/cable size (mm²)
2.5
Number of poles
4

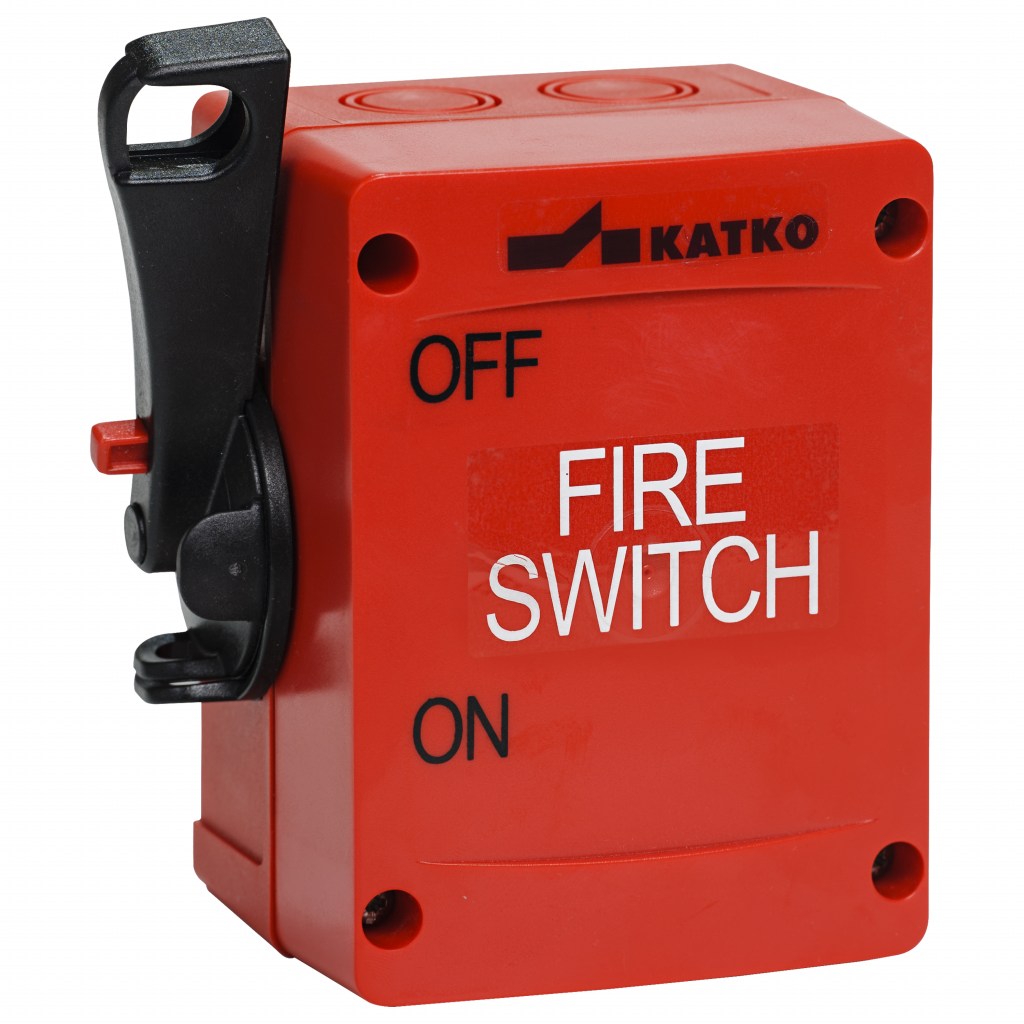

Product type
KEF 416 M M2S
Rated breaking cap. ICN AC-23A 415V (A)
128
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
16
Rated operational current AC-21A 500V (A)
16
Rated operational current AC-21A 690V (A)
16
Rated operational current AC-22A 415V (A)
16
Rated operational current AC-22A 500V (A)
16
Rated operational current AC-22A 690V (A)
16
Rated operational current AC-23A 415V (A)
16
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
7.5
Rated short-ckt. making cap. Icm 415V (kA)
1.6
Rated short-time withstand current 1s Icw 415V (kA)
1.1
Rated therm. current Ithe (A)
16
Rated therm. current Ith (A)
16
Short product description
Isolating switch 4x16A IP66
Switch type
Load Break Switch
Technical name
4x16A 400V 7.5kW
Terminals bolt size (Cu mm²)
1,5..16
Volume
1.0182 l
Width
96.4 mm
Dimensional drawing
Logistical data
Package size 1
1
Package size 1 depth
120 mm
Package size 1 GTIN code
6419410347874
Package size 1 height
400 mm
Package size 1 volume
14.4 l
Package size 1 weight
7.7924 kg
Package size 1 width
300 mm
Sales unit
1
Downloadables
- Dimensional drawings media (a4173a1ebe04eca140932acc4e31eeff475cd39f_IsoSafe_M2S_Dim.png)
- Brochures (6379e76fa5ee33ff60767c9781ca3ebaada6c217_KATKO_IsoSafe_catalogue_102024_en.pdf)
- Brochures (88bc9d1eaaa50e840fe66815236a2d4c16fce617_KATKO_IsoSafe_catalogue_082022_fi.pdf)
- Brochures (86a395c9341799e90f45174a6e4861db77624a97_KATKO_IsoSafe_catalogue_012025_pl.pdf)
- STEP files (322559a083dddadf19fcab5d57be4fdefe16e5b1_IsoSafe_M2S.zip)
- DWG files (6a69789bd787b29db5082c8632e78b000faa0c39_IsoSafe_M2S_LKKE.zip)
- Installation manuals (c05736ed77b25d3075dd65bf60d0453e4a4537f6_KATKO_IsoSafe_KEF_installation_manual_47_en.pdf)
Related accessories
-
Protective roof for M2 enclosures, AlZn
Product typeKSL10
