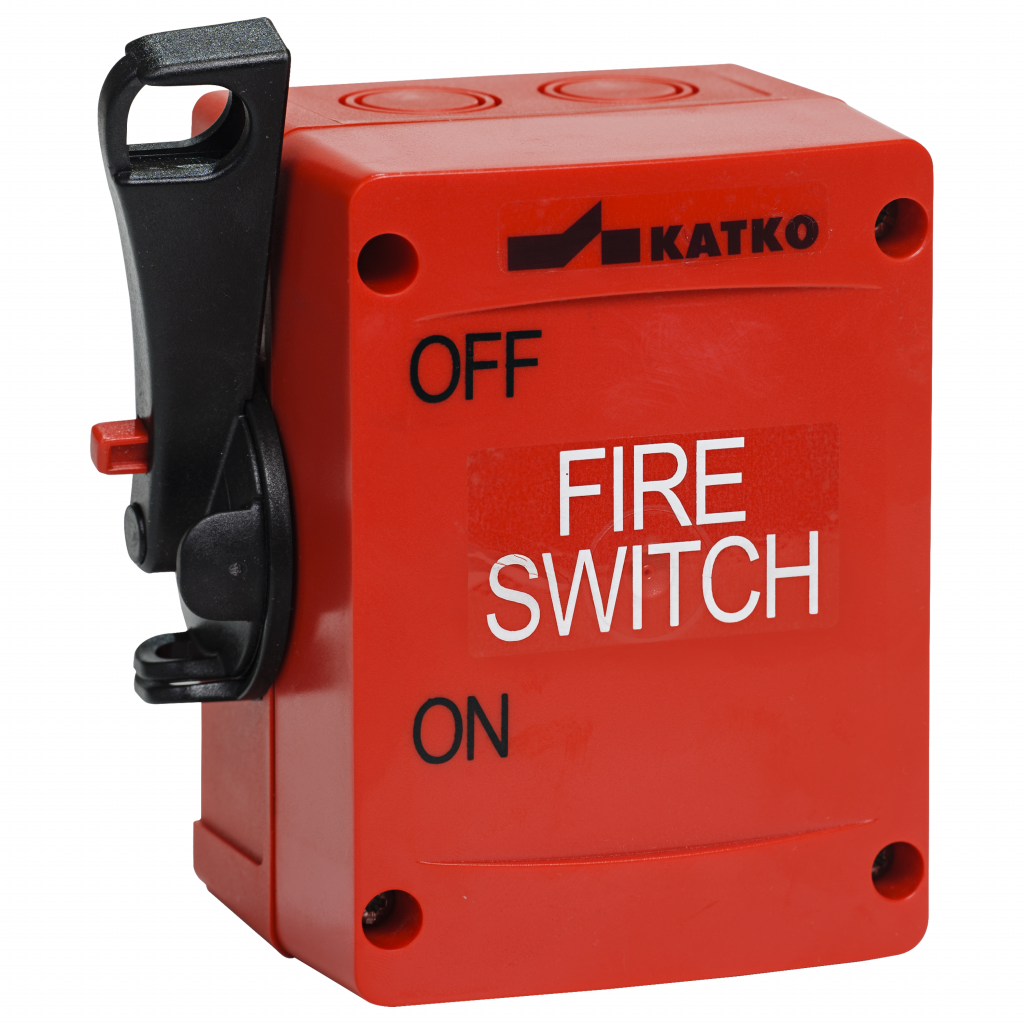

KEF 340 M M2S

KEF 340 M M2S

KEF 340 M M2S

GTIN
6419410304389
Rated operational current AC-23A 415V (A)
40
Enclosure type
Polycarbonate
Enclosure
M2S (96.4 x 130.4 x 81 mm)
View full details

Product details and documents

Technical data

Depth
81 mm
EMC
false
Enclosure
M2S (96.4 x 130.4 x 81 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
GTIN
6419410304389
Height
130.4 mm
IP rating
IP66
Long product name
3-pole, Polycarbonate enclosure; W96.4 x H130.4 x D81
Max. term. torque (Nm)
1.8
Mech. endurance (no. of oper.)
20000
Net weight
0.4541 kg
Nom. values w/cable size (mm²)
10
Number of poles
3
Product type
KEF 340 M M2S
Rated breaking cap. ICN AC-23A 415V (A)
320
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
40
Rated operational current AC-21A 500V (A)
40
Rated operational current AC-21A 690V (A)
40
Rated operational current AC-22A 415V (A)
40
Rated operational current AC-22A 500V (A)
40
Rated operational current AC-22A 690V (A)
40
Rated operational current AC-23A 415V (A)
40
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
22
Rated short-ckt. making cap. Icm 415V (kA)
1.6
Rated short-time withstand current 1s Icw 415V (kA)
1.1
Rated therm. current Ithe (A)
40
Rated therm. current Ith (A)
40
Short product description
Isolating switch 3x40A IP66
Switch type
Load Break Switch
Technical name
3x40A 400V 22kW
Terminals bolt size (Cu mm²)
1,5..16
Volume
1.0182 l
Width
96.4 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
90 mm
Package size 1 GTIN code
6419410342886
Package size 1 height
260 mm
Package size 1 volume
3.744 l
Package size 1 weight
2.715 kg
Package size 1 width
160 mm
Sales unit
1
