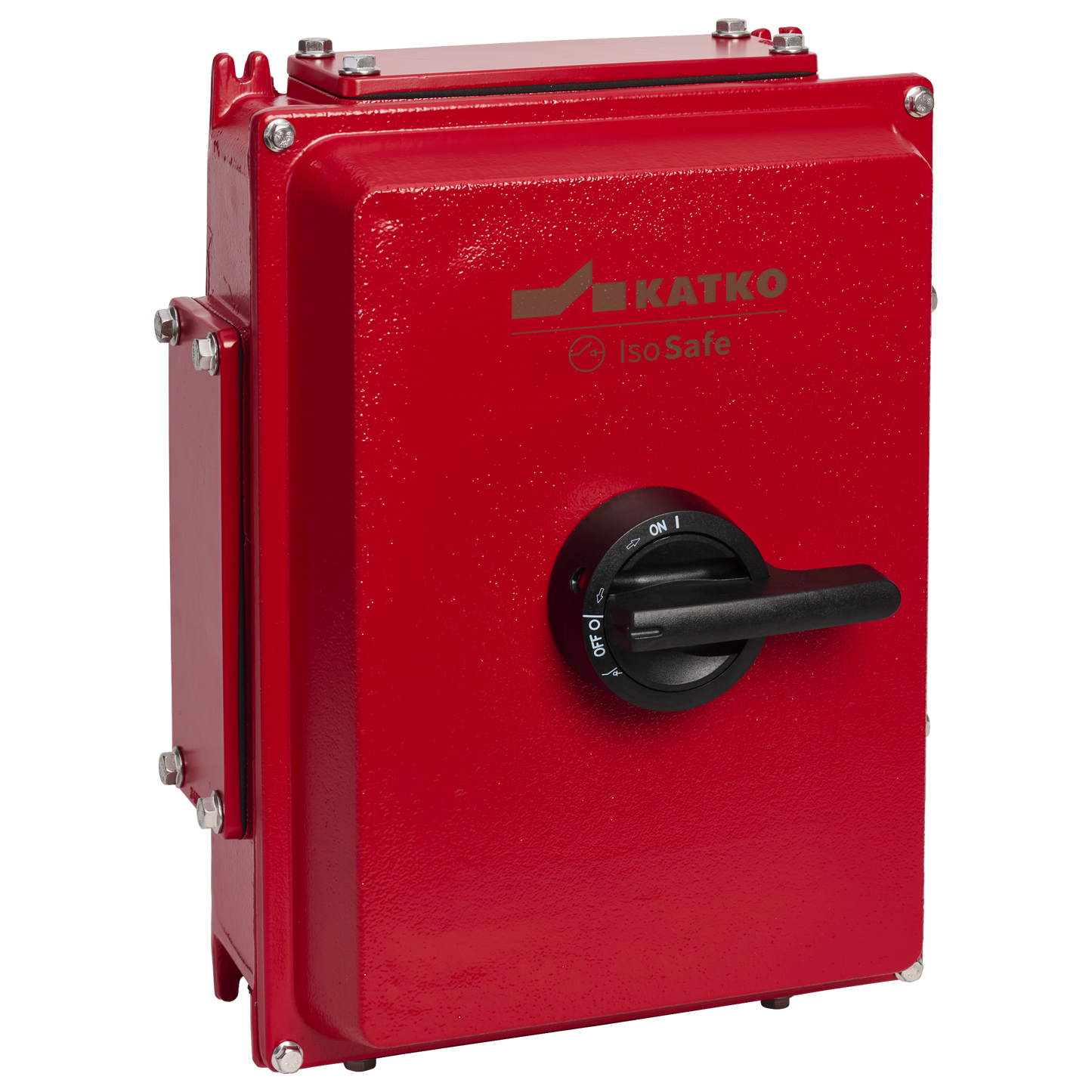

KEA 8160C FR A5

Isolating switch F200 8x160A IP65

KEA 8160C FR A5

Katko firerated isolators (16-800A) are designed to maintain circuit integrity and isolation functionality even under fire exposure. They support safety-critical installations where continued performance during extreme conditions is required.

Built with durable materials and tested to meet relevant fire performance standards, they provide dependable isolation for public buildings, infrastructure, and industrial facilities.

E-number FI
3662655
GTIN
6419410300541
Rated operational current AC-23A 415V (A)
160
Enclosure type
Aluminium
Enclosure
A5 (300 x 400 x 170 mm)
Firerated
F200

Looking for more information about this product?

Our team is here to help.

 View full details

Product details and documents

Technical data

Depth
170 mm
EMC
false
Enclosure
A5 (300 x 400 x 170 mm)
Enclosure type
Aluminium
ETIM Class
EC000216
E-number FI
3662655
Firerated
F200
GTIN
6419410300541
Height
400 mm
IP rating
IP65
Long product name
8-pole, Heat-resistant; F200 200°C/3h EN 12101-3, Aluminum enclosure; W300 x H400 x D170
Max. term. torque (Nm)
6
Mech. endurance (no. of oper.)
16000
Net weight
9.8645 kg
Nom. values w/cable size (mm²)
95
Number of poles
8
Product type
KEA 8160C FR A5
Rated breaking cap. ICN AC-23A 415V (A)
1280
Rated breaking cap. ICN AC-23A 500V (A)
800
Rated breaking cap. ICN AC-23A 690V (A)
800
Rated fused short-ckt current back-up fuse opt 1 (A)
160
Rated fused short-ckt current peak value (kA)
15
Rated fused short-ckt current RMS Ik opt 1 (kA)
65
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
160
Rated operational current AC-21A 500V (A)
160
Rated operational current AC-21A 690V (A)
160
Rated operational current AC-22A 415V (A)
160
Rated operational current AC-22A 500V (A)
160
Rated operational current AC-22A 690V (A)
160
Rated operational current AC-23A 415V (A)
160
Rated operational current AC-23A 500V (A)
100
Rated operational current AC-23A 690V (A)
100
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
90
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
55
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
90
Rated short-ckt. making cap. Icm 690V (kA)
8
Rated short-time withstand current 1s Icw 690V (kA)
5
Rated therm. current Ithe (A)
200
Rated therm. current Ith (A)
200
Short product description
Isolating switch F200 8x160A IP65
Switch type
Load Break Switch
Technical name
8x160A 400V 90kW
Terminals bolt size (Cu mm²)
6..70
Volume
20.4 l
Width
300 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
300 mm
Package size 1 GTIN code
6419410300541
Package size 1 height
800 mm
Package size 1 volume
192 l
Package size 1 weight
9.8645 kg
Package size 1 width
800 mm
Sales unit
1
