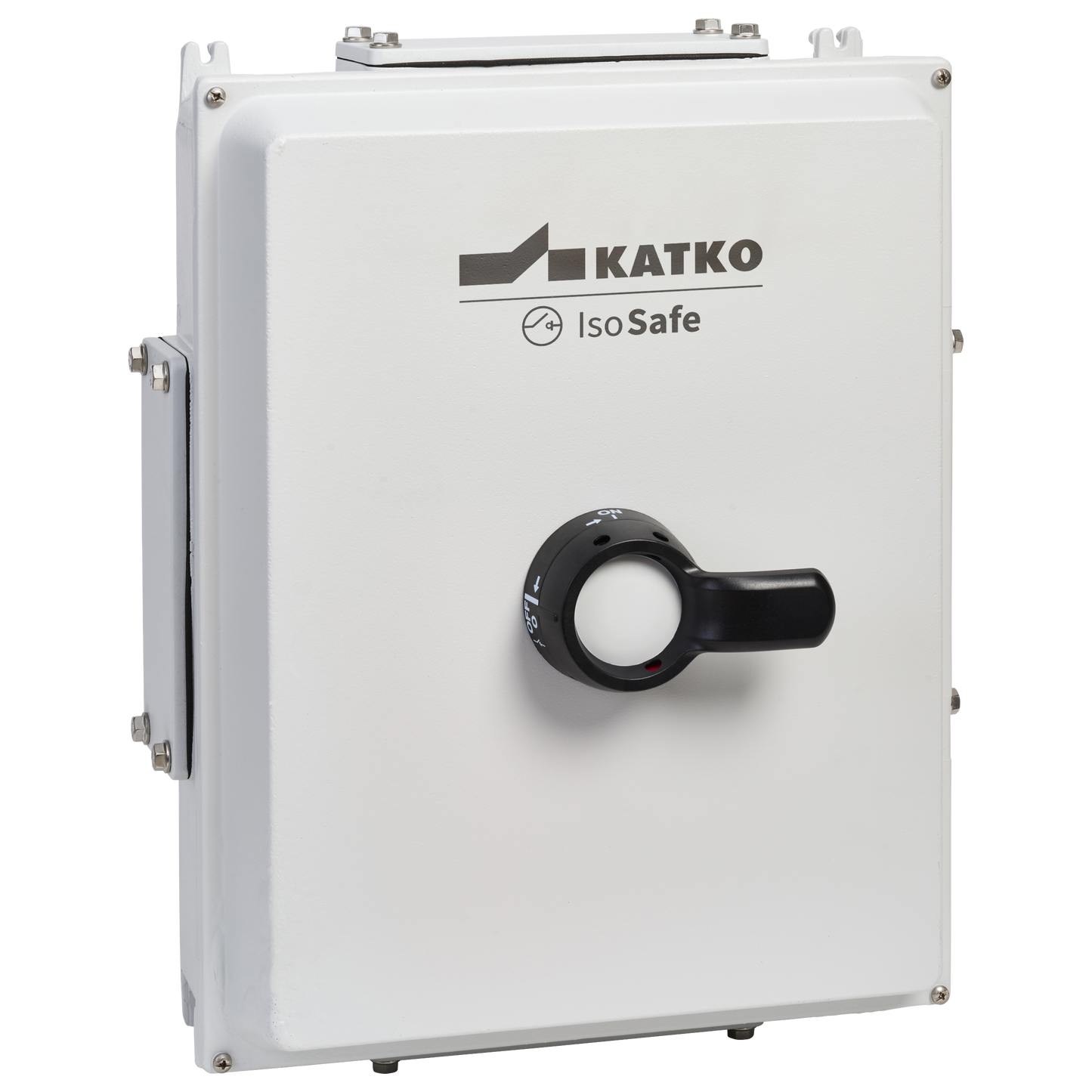

KEA 4200 A6

Isolating switch 4x200A IP65

KEA 4200 A6

Katko’s IsoSafe aluminium enclosed isolators are designed for demanding industrial and outdoor applications where durability, safety and reliable performance are essential. The robust aluminium enclosure provides lasting protection against weather, corrosion and mechanical stress, supporting reliable operation in challenging environments.

High-quality surface treatments enhance resistance to UV radiation, chemicals and wear, contributing to long service life in outdoor installations. Integrated safety features, including a secure door interlocking defeat mechanism and padlockable operation, help prevent unintended use and enable safe operation and maintenance. Solid construction and clean, functional design ensure consistent performance day after day.

Designed and manufactured in Finland, IsoSafe aluminium isolators reflect decades of application-driven engineering and long-term thinking. Built to meet international standards, the range is trusted in installations where failure is not an option and supports safe, sustainable and future-proof electrical distribution solutions for critical systems worldwide.

GTIN
6419410358061
Rated operational current AC-23A 415V (A)
200
Enclosure type
Aluminium
Enclosure
A6 (400 x 500 x 170 mm)

Looking for more information about this product?

Our team is here to help.

View full details

Product details and documents

Technical data

Depth
170 mm
EMC
false
Enclosure
A6 (400 x 500 x 170 mm)
Enclosure type
Aluminium
ETIM Class
EC000216
GTIN
6419410358061
Height
500 mm
IP rating
IP65
Max. term. torque (Nm)
15..22
Mech. endurance (no. of oper.)
16000
Net weight
11.3649 kg
Nom. values w/cable size (mm²)
95
Number of poles
4
Product type
KEA 4200 A6
Rated breaking cap. ICN AC-23A 415V (A)
1600
Rated breaking cap. ICN AC-23A 500V (A)
1600
Rated breaking cap. ICN AC-23A 690V (A)
1600
Rated fused short-ckt current back-up fuse opt 1 (A)
250
Rated fused short-ckt current back-up fuse opt 2 (A)
315
Rated fused short-ckt current peak value (kA)
26
Rated fused short-ckt current RMS Ik opt 1 (kA)
100
Rated fused short-ckt current RMS Ik opt 2 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
12
Rated insulation volt. Ui (V)
1000
Rated operational current AC-21A 415V (A)
200
Rated operational current AC-21A 500V (A)
200
Rated operational current AC-21A 690V (A)
200
Rated operational current AC-22A 415V (A)
200
Rated operational current AC-22A 500V (A)
200
Rated operational current AC-22A 690V (A)
200
Rated operational current AC-23A 415V (A)
200
Rated operational current AC-23A 500V (A)
200
Rated operational current AC-23A 690V (A)
200
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
110
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
132
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
160
Rated short-ckt. making cap. Icm 690V (kA)
14
Rated short-time withstand current 1s Icw 1000V (kA)
8
Rated therm. current Ithe (A)
250
Rated therm. current Ith (A)
250
Short product description
Isolating switch 4x200A IP65
Switch type
Load Break Switch
Technical name
4x200A 400V 110kW
Terminals bolt size (Cu mm²)
M8
Volume
34 l
Width
400 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 GTIN code
6419410358061
Package size 1 weight
11.3649 kg
Sales unit
1
