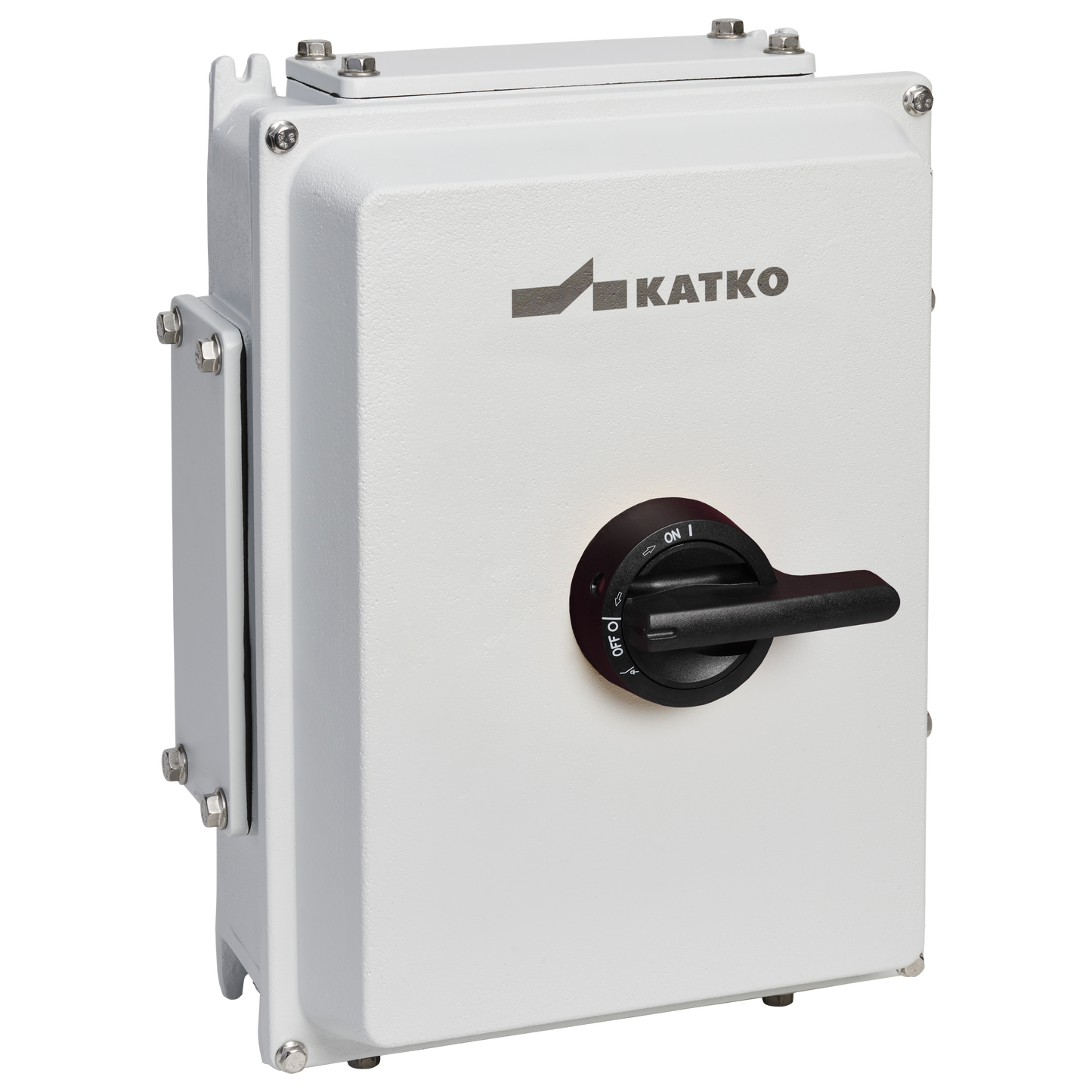

KEA 3200C A5

KEA Aluminium 16-250A

  • IP66; Enclosure types A2, A4
  • IP65; Enclosure types A5, A6
  • IK08; A2, A4 (Degree of mechanical impact)
  • IK10: A5, A6
  • Excellent for hard weather conditions
  • Wide operating temperature range
  • Good resistance against many chemicals
  • Good UV resistance
  • Padlockable
  • Door interlock with defeat mechanism
  • Tested according to IEC 60947-3
  • Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.

Technical datasheet >>

Accessories

Product details

SKU KEA 3200C A5
AC-21 400/415 V (A) 200 A
AC-21 690 V (A) 200 A
AC-22 400/415 V (A) 200 A
AC-23 400/415 V (A/kW) 200 A / 110 kW
Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size M8
Color Standard
EAN 6419410332900
Enclosure A5
Enclosure Type Aluminium
IP Rating 65
Number of Poles 3
Operation Front-operated
Switch type Load Break Switch
Weight (kg) 8.6

Dimensional drawing

Product diagram
