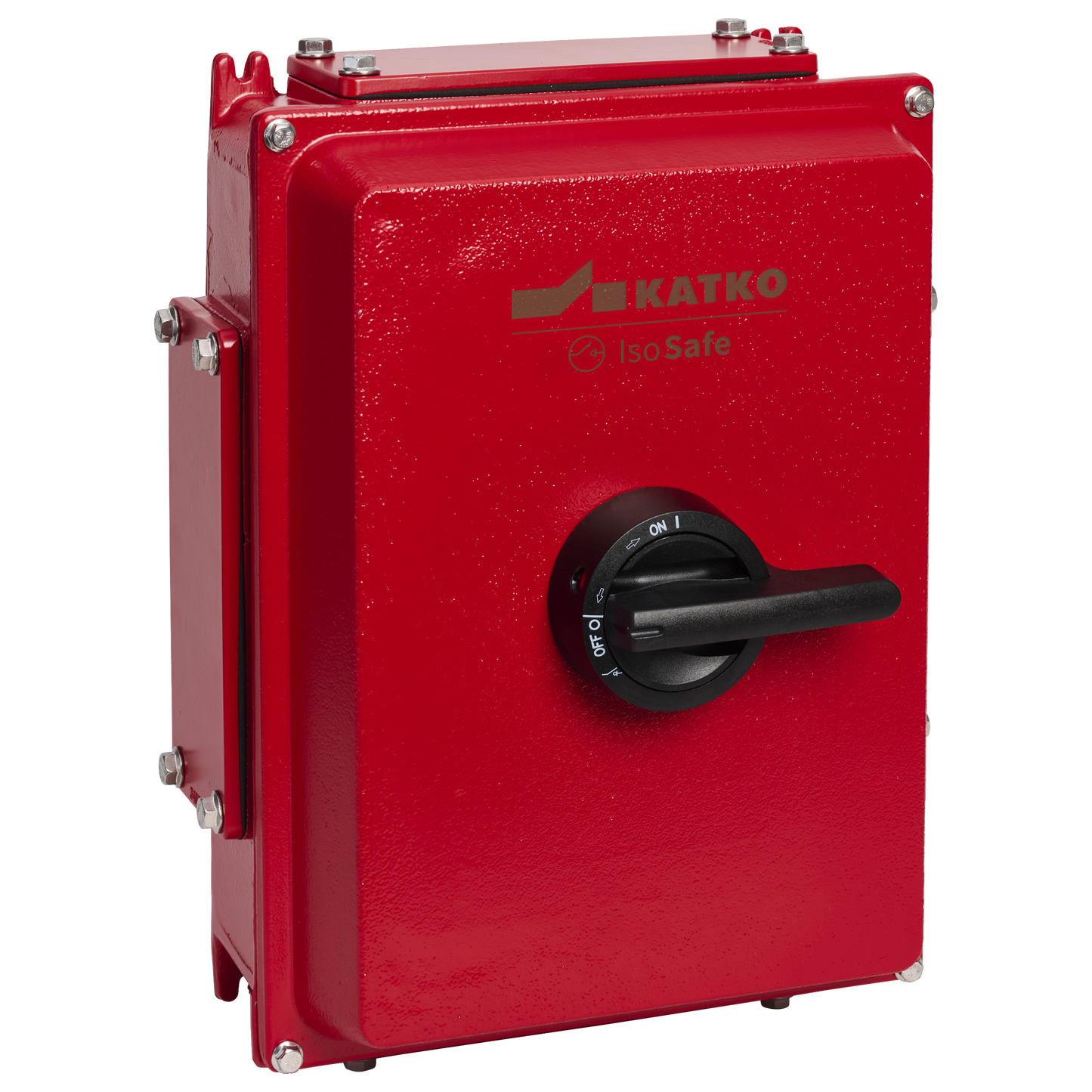

KEA 3125 FR3 A5

KEA Firerated aluminium 16-200A

  • F200 3H (FR) / F300 2H (FR3)
  • FR designed to conform to F200 class of EN 12101-3 smoke and heat standard, 200°C for 3 hours
  • FR3 designed to conform to F300 class of EN 12101-3 smoke and heat standard, 300°C for 2 hours
  • IP66
  • Padlockable
  • Door interlock with defeat mechanism
  • ON-locking facility as option
  • Good corrosion and UV resistance
  • Excellent for hard weather conditions
  • Tested according to IEC 60947-3
  • Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.
Accessories

Product details

SKU KEA 3125 FR3 A5
AC-21 400/415 V (A) 160 A
AC-21 690 V (A) 160 A
AC-22 400/415 V (A) 125 A
AC-22 690 V (A) 125 A
AC-23 400/415 V (A/kW) 100 A / 55 kW
Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size 6-70
Color Standard
EAN 6419410333549
Enclosure A5
Enclosure Type Firerated Aluminium
IP Rating 65
Number of Poles 3
Operation Front-operated
Switch type Load Break Switch
Weight (kg) 8.6

Dimensional drawing

Product diagram
