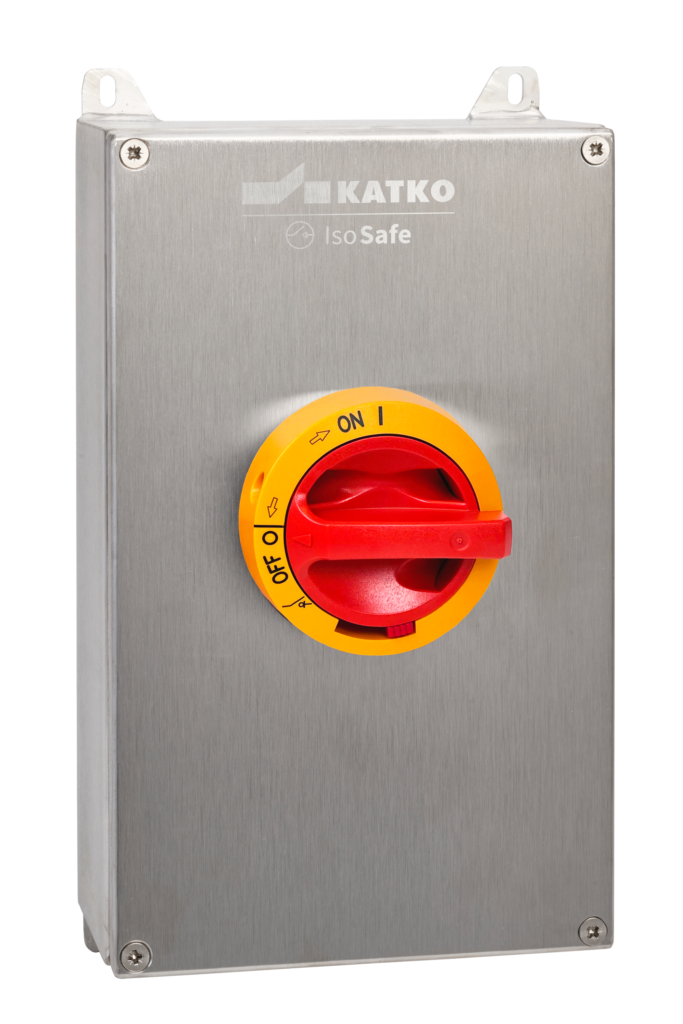

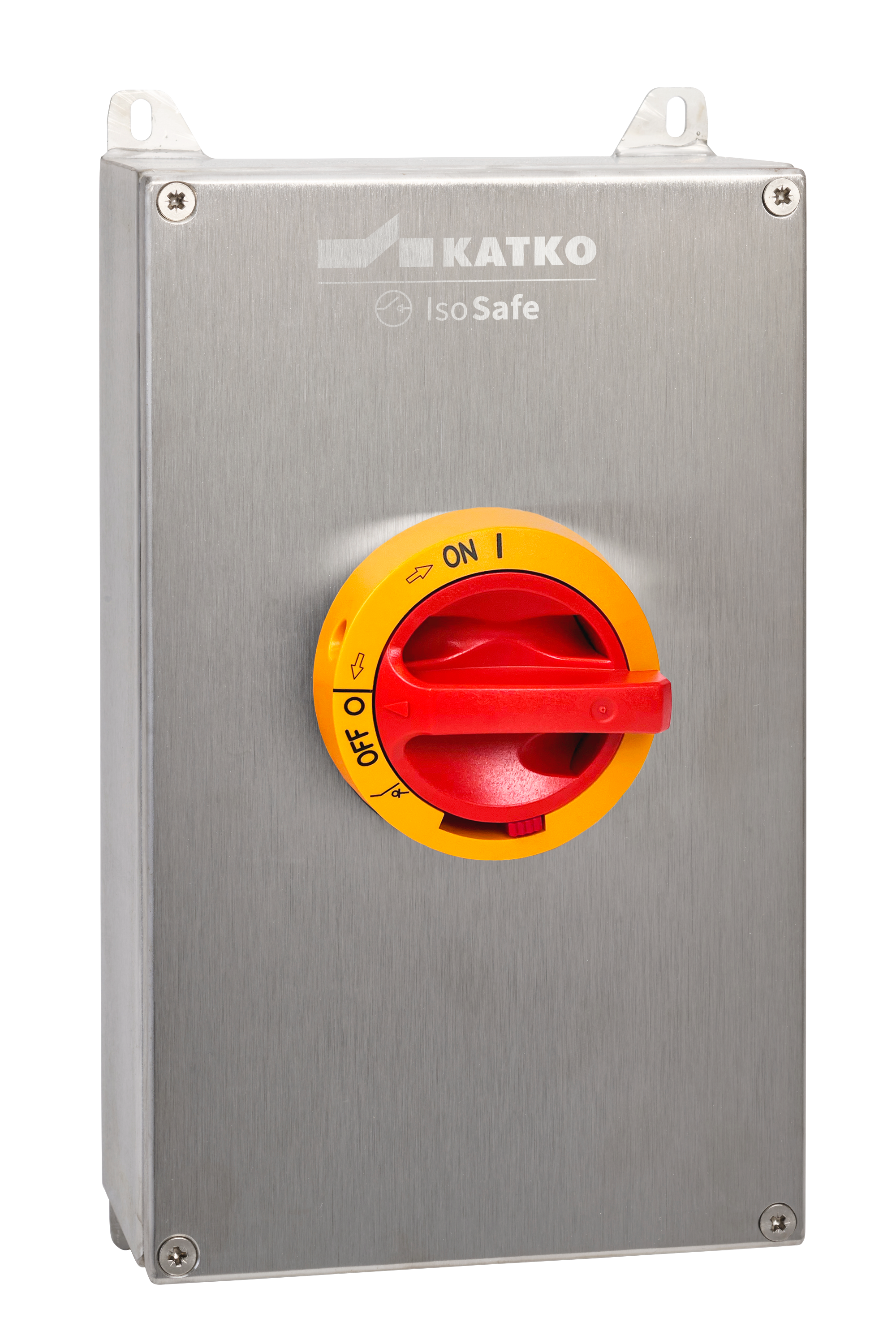

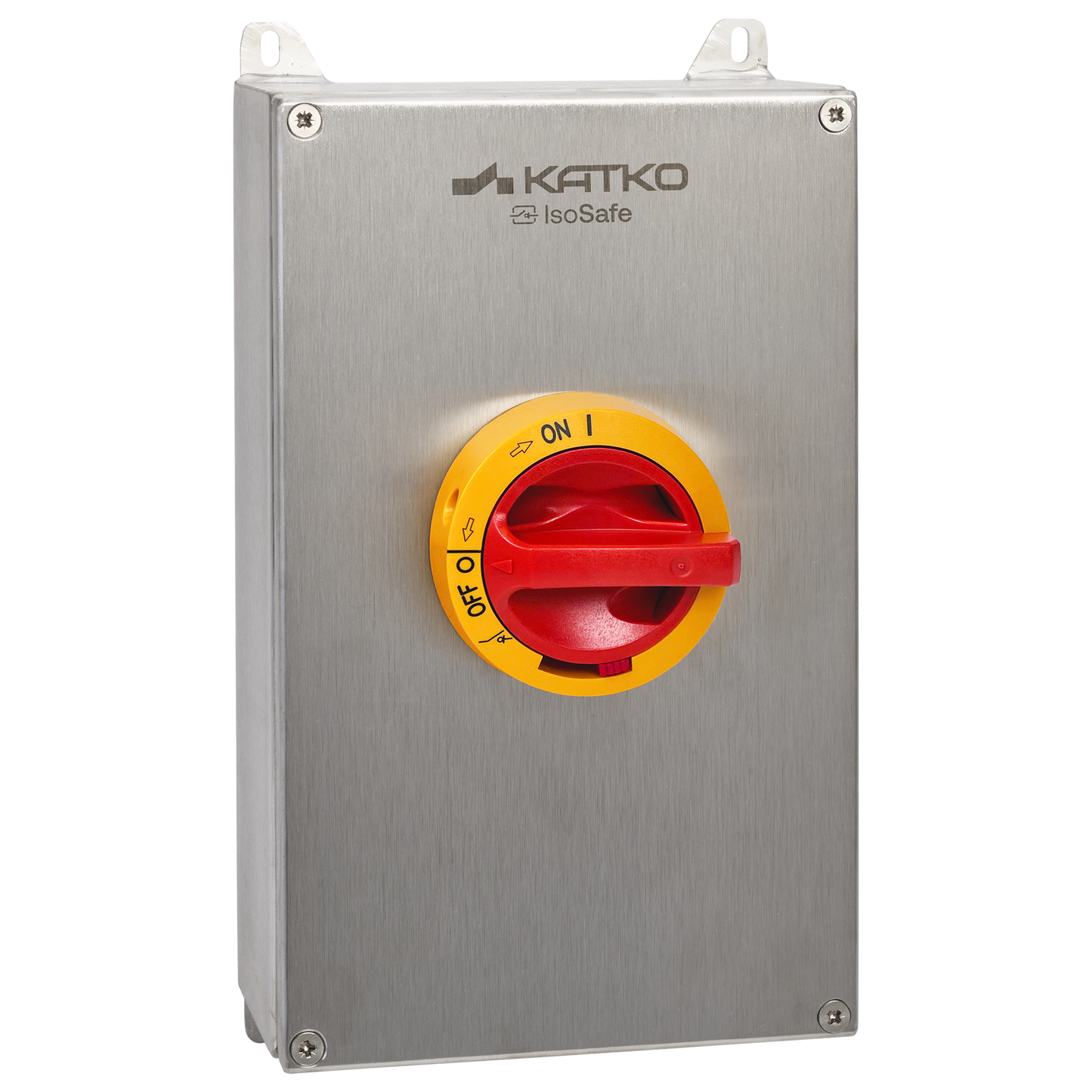

ISF 430UL YR RA4

Manual motor controller 4x30A

ISF 430UL YR RA4

Katko UL/cUL listed stainless steel enclosed disconnect switches (AISI 304 and AISI 316L) are designed for demanding industrial and hygienic environments where corrosion resistance, reliability and compliance are essential. Available in Type 1, Type 3R, Type 12 and Type 4X configurations, the stainless steel enclosure provides excellent protection against chemicals and frequent washdown, ensuring dependable operation in harsh conditions.

The switches support across-the-line motor starting up to 75 HP at 600 V and are suitable for a wide range of motor and load disconnect applications. Certified according to UL and CSA requirements and compliant with UL 60947-4-1A, they meet North American regulatory expectations where performance, cleanliness and durability are critical.

GTIN
6419410346815
Ampere rating 600V
30
Enclosure type
Stainless steel enclosure (AISI 316L)
Enclosure
RA4 (160 x 260 x 90 mm)

Looking for more information about this product?

Our team is here to help.

View full details

Product details and documents

Technical data

Ampere rating 600V
30.0
Depth
90 mm
EMC
false
Enclosure
RA4 (160 x 260 x 90 mm)
Enclosure type
Stainless steel enclosure (AISI 316L)
ETIM Class
EC000216
GTIN
6419410346815
Height
260 mm
HP 208V
5.0
HP 480V
10.0
HP 600V
15.0
IP rating
IP66
Long product name
UL-listed, 4-pole, Yellow-red handle, Acid-resistant stainless steel enclosure (AISI 316L); W160 x H260 x D90
Number of poles
4
Product type
ISF 430UL YR RA4
Short product description
Manual motor controller 4x30A
Technical name
4x25A 400V 11kW
UL
UL 60947-4-1A
Volume
3.744 l
Width
160 mm
Wire size Cu
14-8 AWG

No dimensional drawings available for this product.

Dimensional drawing

No dimensional drawings available for this product.

Logistical data

Package size 1 GTIN code
6419410346815
