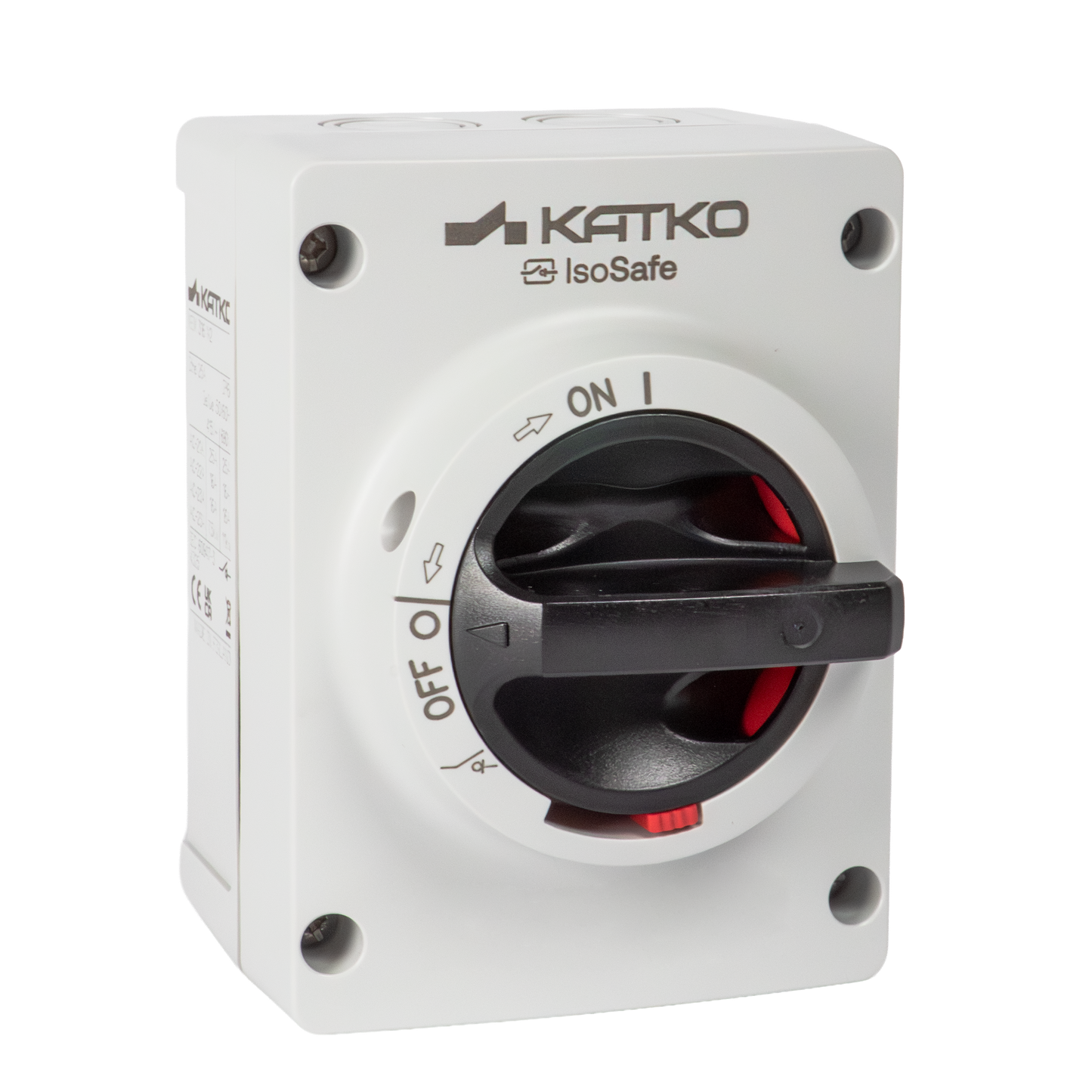

ISF 430UL M2

Manual motor controller 4x30A

ISF 430UL M2

Katko UL/cUL listed polycarbonate enclosed disconnect switches are designed for demanding industrial and commercial applications where safety, compliance and reliable disconnection are essential. Featuring a Type 4X polycarbonate enclosure, they provide excellent corrosion resistance, electrical insulation and UV stability, ensuring dependable operation in both indoor and outdoor environments.

The switches support across-the-line motor starting up to 75 HP at 600 V and are suitable for a wide range of motor and load disconnect applications. Certified according to UL and CSA requirements and compliant with UL 60947-4-1A, they meet the expectations of North American installations where performance and regulatory compliance are critical.

E-number FI
GTIN
6419410294765
Ampere rating 600V
30
Enclosure type
Polycarbonate
Enclosure
M2 (96 x 130 x 74 mm)

Looking for more information about this product?

Our team is here to help.

View full details

Product details and documents

Technical data

Ampere rating 600V
30.0
Depth
104 mm
EMC
false
Enclosure
M2 (96 x 130 x 74 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
E-number FI
3662550
GTIN
6419410294765
Height
130 mm
HP 208V
5.0
HP 480V
10.0
HP 600V
15.0
IP rating
IP66
Long product name
UL-listed, 4-pole, Polycarbonate enclosure; W96.4 x H130.4 x D106
Number of poles
4
Product type
ISF 430UL M2
Short product description
Manual motor controller 4x30A
Technical name
4x25A 400V 11kW
UL
UL 60947-4-1A
Volume
1.2979 l
Width
96 mm
Wire size Cu
14-8 AWG

Dimensional drawing

Logistical data

Package size 1 depth
120 mm
Package size 1 GTIN code
6419410294765
Package size 1 height
200 mm
Package size 1 volume
3.6 l
Package size 1 width
150 mm
