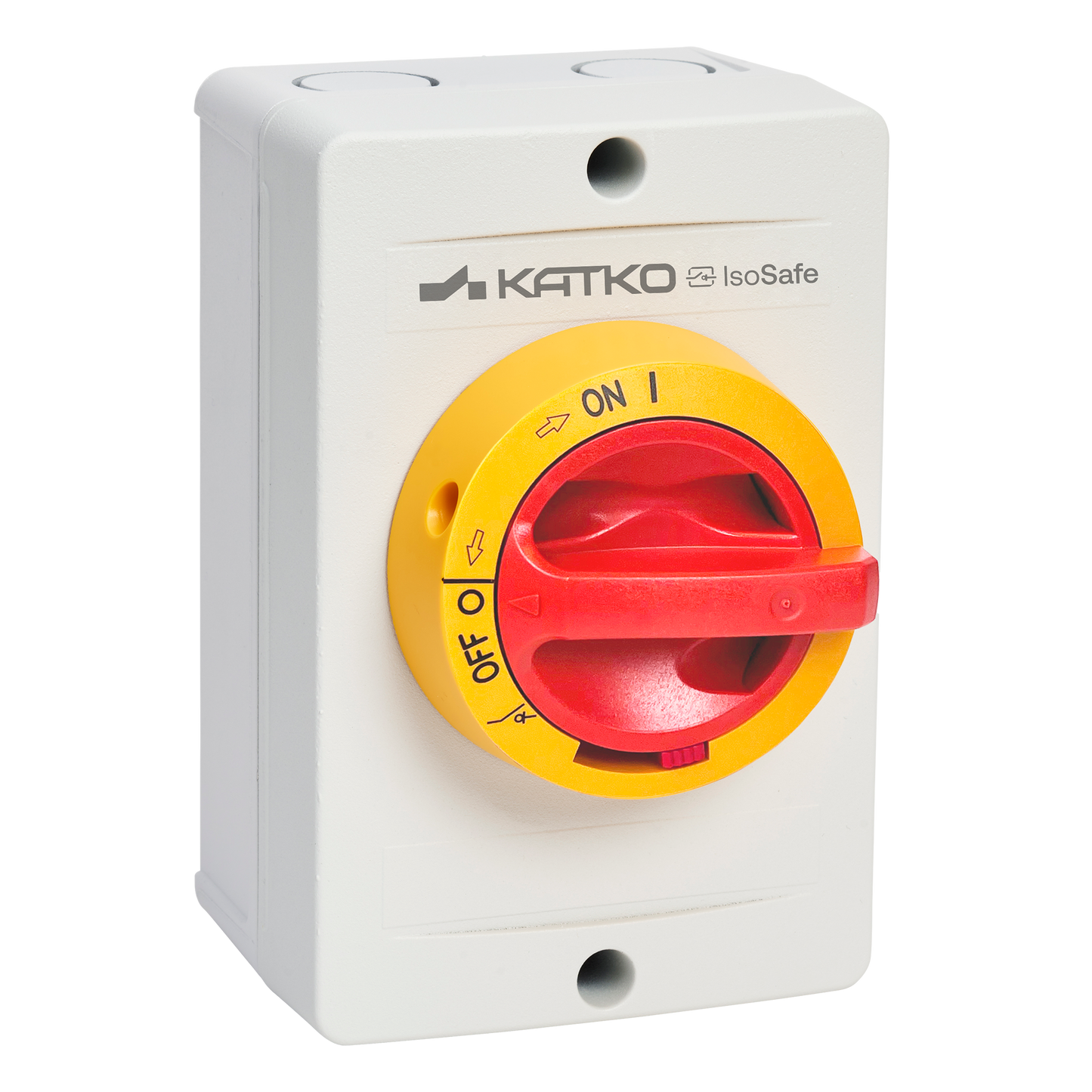

ISF 416UL YR A2
UL listed enclosed manual motor controllers ISF-series 16-40A
The ISF-Series of cUL listed Enclosed Manual Motor Controllers (16–40 A) are designed for demanding industrial applications where space, durability, and flexibility are critical. The ISF-Series features KATKO’s new LSF 16–40 A switch, delivering reliable performance and installer-friendly design.
- Available in polycarbonate (M2 & M3), aluminium (A2), sheet steel (T3) and acid proof steel AISI 316L (RA2, RA4, RA2R & RA2RS)
- ISF models with the new LSF 16-40 A LoadSafe switches
- Type 4X enclosure
- Across the line, motor starting up to 20 HP / 600 V
- General use rating 16 A to 40 A / 600 V
- Side-mounted auxiliary contacts (NO/NC) with screw terminals. Also available with integrated auxiliary contact versions (NO).
- More wiring space
- Padlockable
- Available also as EMC versions. EMC models you can find here.
Product details
| SKU | ISF 416UL YR A2 |
|---|---|
| Ampere Rating (600V) | 16 A |
| Color | Standard |
| EAN | 6419410294567 |
| Enclosure | A2 |
| HP 208V | 3HP |
| HP 480V | 7.5HP |
| HP 600V | 10HP |
| Number of Poles | 4 |
| Weight (lb/kg) | 2.4 / 1.1 |
| Wire Size (Cu Only) | 14-8 AWG |
Dimensional drawing
