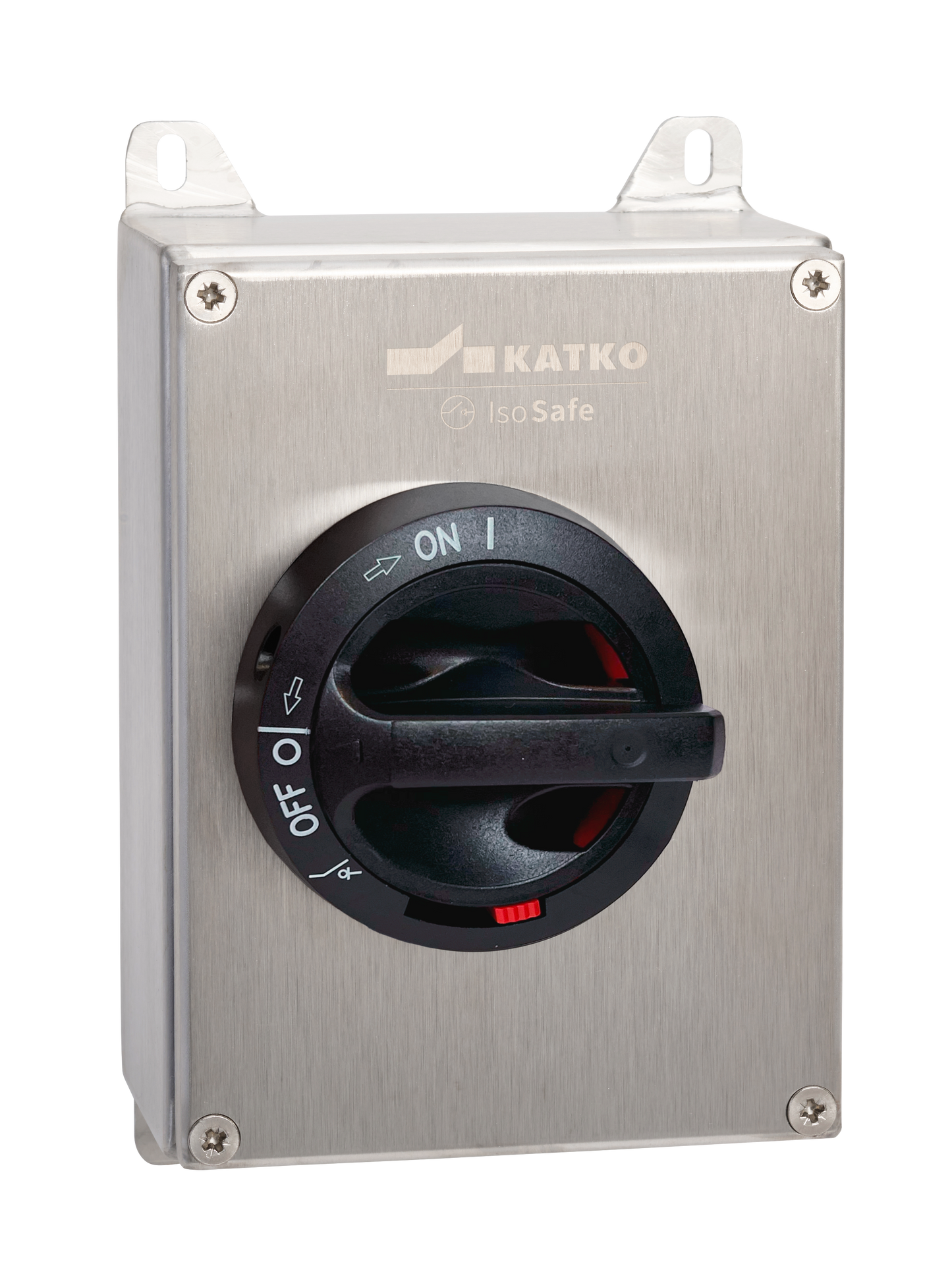

ISF 340NOUL RA2

Manual motor controller 3x40A 1NO

ISF 340NOUL RA2

Katko UL/cUL listed stainless steel enclosed disconnect switches (AISI 304 and AISI 316L) are designed for demanding industrial and hygienic environments where corrosion resistance, reliability and compliance are essential. Available in Type 1, Type 3R, Type 12 and Type 4X configurations, the stainless steel enclosure provides excellent protection against chemicals and frequent washdown, ensuring dependable operation in harsh conditions.

The switches support across-the-line motor starting up to 75 HP at 600 V and are suitable for a wide range of motor and load disconnect applications. Certified according to UL and CSA requirements and compliant with UL 60947-4-1A, they meet North American regulatory expectations where performance, cleanliness and durability are critical.

E-number FI
GTIN
6419410344262
Ampere rating 600V
40
Enclosure type
Stainless steel enclosure (AISI 316L)
Enclosure
RA2 (120 x 160 x 77 mm)
Mounted auxiliary contacts
1NO

Looking for more information about this product?

Our team is here to help.

View full details

Product details and documents

Technical data

Ampere rating 600V
40.0
Depth
77 mm
EMC
false
Enclosure
RA2 (120 x 160 x 77 mm)
Enclosure type
Stainless steel enclosure (AISI 316L)
ETIM Class
EC000216
E-number FI
3662670
GTIN
6419410344262
Height
160 mm
HP 208V
5.0
HP 480V
15.0
HP 600V
20.0
IP rating
IP66
Long product name
UL-listed, 3-pole, Fixed 1NO auxiliary contact, Acid-resistant stainless steel enclosure (AISI 316L); W120 x H160 x D77
Mounted auxiliary contacts
1NO
Net weight
0.6862 kg
Number of poles
3
Product type
ISF 340NOUL RA2
Short product description
Manual motor controller 3x40A 1NO
Technical name
3x40A 400V 22kW
UL
UL 60947-4-1A
Volume
1.4784 l
Width
120 mm
Wire size Cu
14-8 AWG

Dimensional drawing

Logistical data

Package size 1 GTIN code
6419410344262
Package size 1 weight
0.6862 kg
