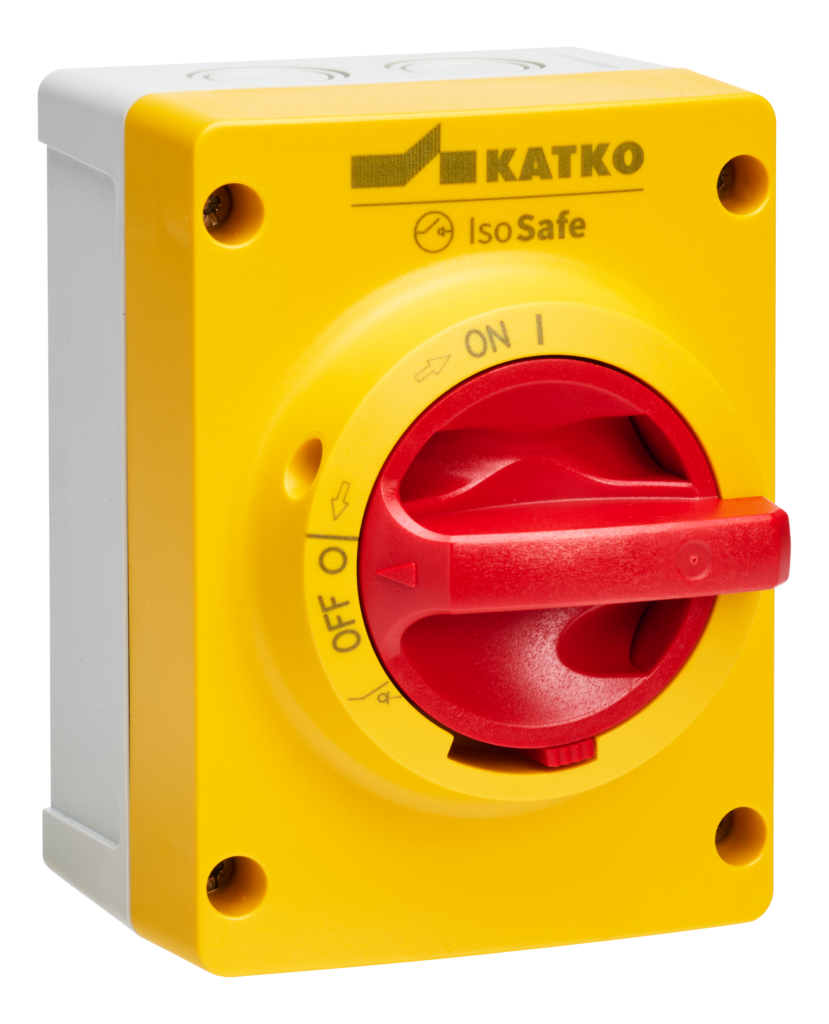

ISF 330NOUL YR M2

Manual motor controller 3x30A 1NO

ISF 330NOUL YR M2

Katko UL/cUL listed polycarbonate enclosed disconnect switches are designed for demanding industrial and commercial applications where safety, compliance and reliable disconnection are essential. Featuring a Type 4X polycarbonate enclosure, they provide excellent corrosion resistance, electrical insulation and UV stability, ensuring dependable operation in both indoor and outdoor environments.

The switches support across-the-line motor starting up to 75 HP at 600 V and are suitable for a wide range of motor and load disconnect applications. Certified according to UL and CSA requirements and compliant with UL 60947-4-1A, they meet the expectations of North American installations where performance and regulatory compliance are critical.

GTIN
6419410344774
Ampere rating 600V
30
Enclosure type
Polycarbonate
Enclosure
M2 (96 x 130 x 74 mm)
Mounted auxiliary contacts
1NO

Looking for more information about this product?

Our team is here to help.

View full details

Product details and documents

Technical data

Ampere rating 600V
30.0
Depth
104 mm
EMC
false
Enclosure
M2 (96 x 130 x 74 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
GTIN
6419410344774
Height
130 mm
HP 208V
5.0
HP 480V
10.0
HP 600V
15.0
IP rating
IP66
Long product name
UL-listed, 3-pole, Fixed 1NO auxiliary contact, Yellow-red handle, Polycarbonate enclosure; W96.4 x H130.4 x D106
Mounted auxiliary contacts
1NO
Number of poles
3
Product type
ISF 330NOUL YR M2
Short product description
Manual motor controller 3x30A 1NO
Technical name
3x25A 400V 11kW
UL
UL 60947-4-1A
Volume
1.2979 l
Width
96 mm
Wire size Cu
14-8 AWG

Dimensional drawing

Logistical data

Package size 1 GTIN code
6419410344774
