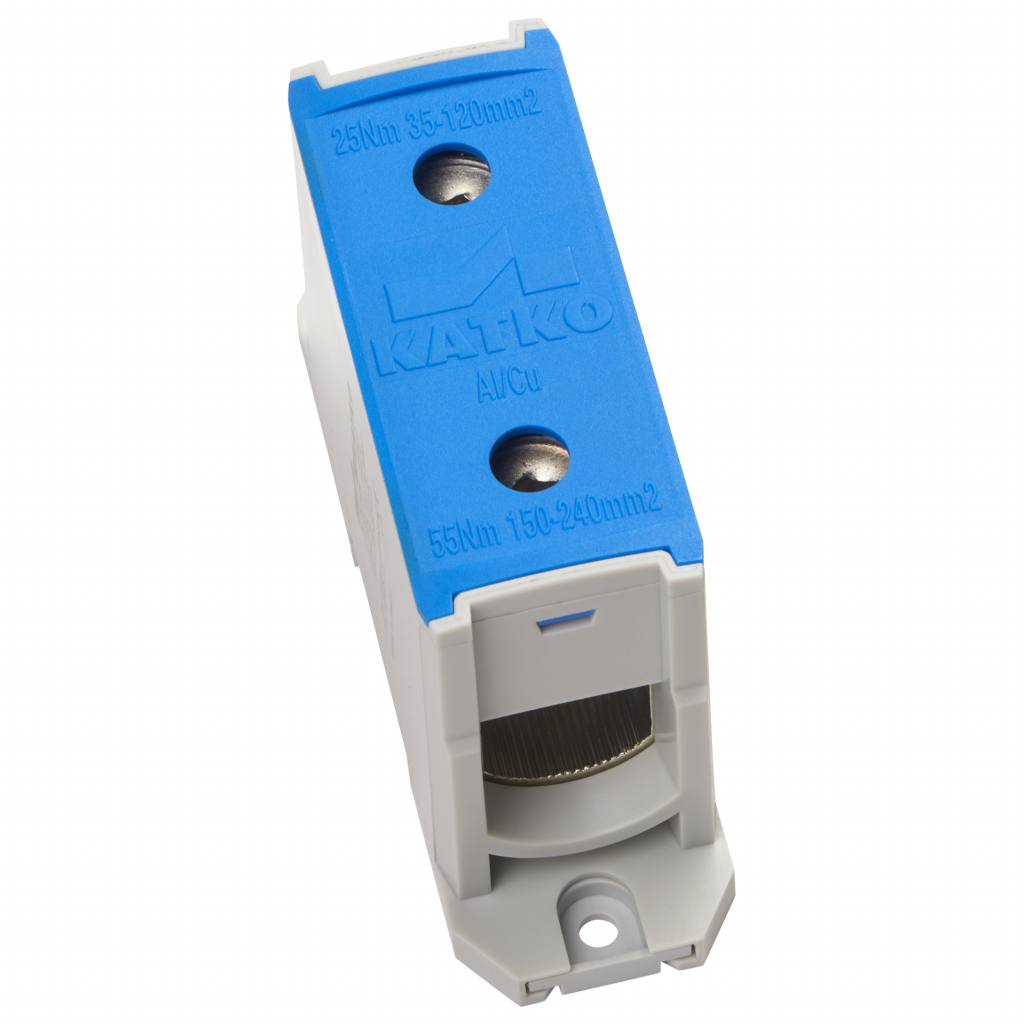

KL1X240N

UL Listed Terminal Blocks

  • UL listed connector
  • Sales unit = 1 piece
  • Bi-metal terminal suitable for Al (KL terminals) / Cu (KL and KC terminals) cables
  • Available in grey, blue (N) and yellow/green (PE)
  • Touchproof, IP20
  • Housing and cover in polyamide
  • Terminal material KL tin-coated, greased aluminium
  • Environmentally friendly materials
  • Durable laser markings

UL CATALOGUE PAGE>>

Terminal Blocks

  • UL listed connectors, see link below
  • Sales unit = 1 piece
  • Bi-metal terminal suitable for Al (KL terminals) / Cu (KL and KC terminals) cables
  • Available in grey, blue (N) and yellow/green (PE)
  • 50 and 95 mm2 connectors also available as 1-pole branching connector (3x) and 3-pole connector (3x1x)
  • Touchproof, IP20
  • Housing and cover in polyamide
  • KL range: Certified according to IEC 61238-1 Class A
  • KL range: Certified according to IEC 60947-7-1
  • Terminal material KL tin-coated, greased aluminium
  • Terminal material KC steel and brass
  • KC-terminals and KL1X16 models for DIN-rail mounting, refer to detailed product specifications
  • KL-terminals (excl. KL1X16 models) for DIN-rail or base mounting, refer to detailed product specifications
  • Environmentally friendly materials
  • Durable laser markings
  • More information and package sizes from the catalogue
  • KLTS50 – 300 terminal shrouds available

Connector catalogue >>

Conductors per cross section (mm2) table >>

UL 1059 listed Terminal Blocks >>

Product details

SKU KL1X240N
Al mm² 35 - 240
Color N
Cu mm² 35 - 240
E-Number 1942074
EAN 6419410378441
In (Al) (A) 315
In (Cu) (A) 425
Key size Hex 8
Mounting Screw / DIN
Number of Conductors 2
Package size 14
Torque Al/Cu (Nm) 25 (35 - 120 mm²) / 55 (150 - 240 mm²)
Un (V) 1000
Weight (lb/kg) 0.646 / 0.293

Dimensional drawing

Product diagram
