Dane mogą ulec zmianie bez powiadomienia. Zawsze potwierdź dane u swojego sprzedawcy.

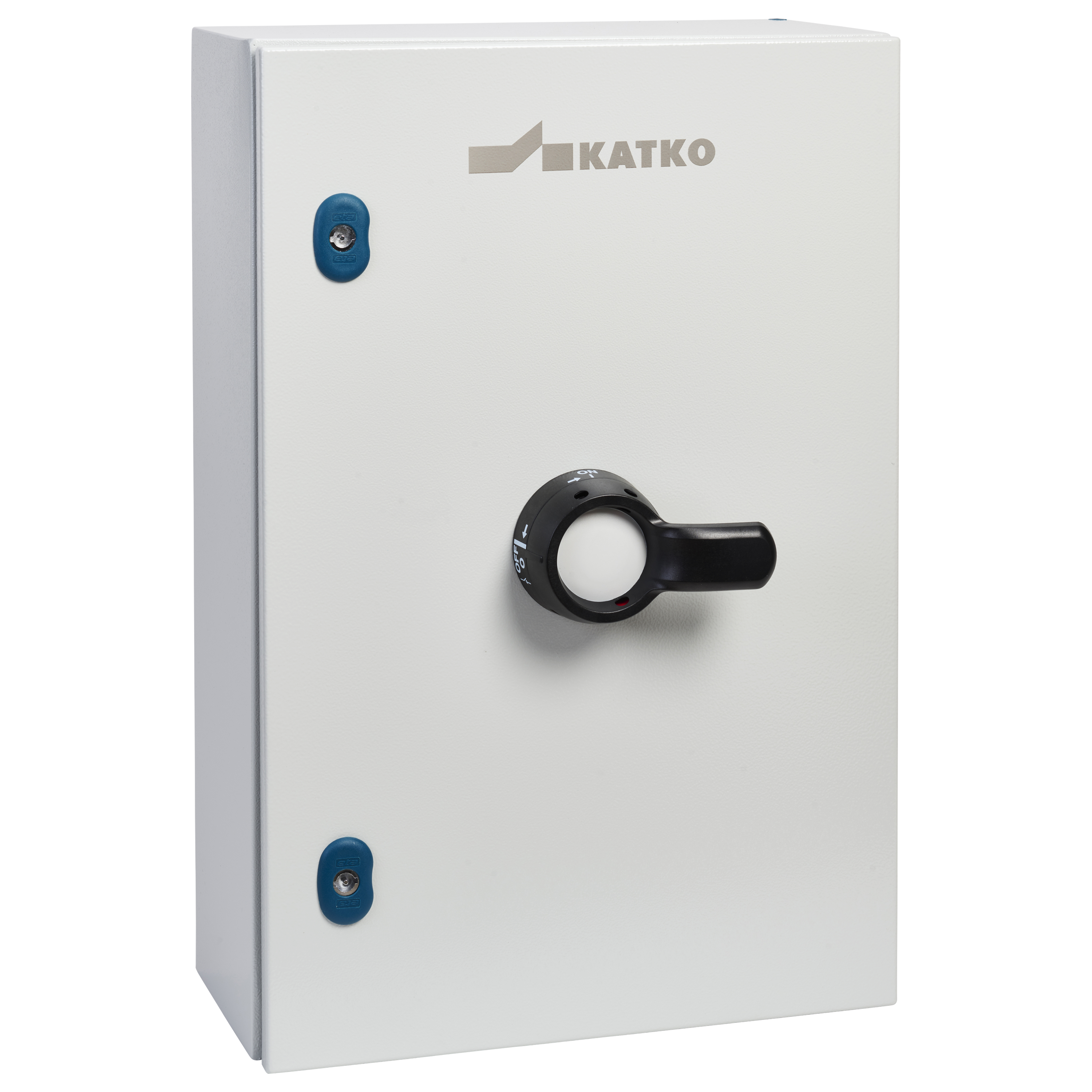

KVKET 3160 T6

Wyłaczniki bezpiecznikowe w obudowach 16-630A

  • Available as 1P, 2P, 3P and 4P versions
  • KKVT/M/R (16 – 32 A) with KU switch and KV 10×38 fuse holder
  • KVKET/M/R (20-630 A) with KVKE switch fuse
  • Available as BS and DIN fuse version. DIN as standard
  • All versions available in grey/black or yellow/red. Grey/black as standard
  • M=polycarbonate, T=steel, R=stainless steel

Szczegóły produktu

SKU KVKET 3160 T6
AC-21 400/415 V (A) 160 A
AC-21 690 V (A) 160 A
AC-22 400/415 V (A) 160 A
AC-22 690 V (A) 160 A
AC-23 400/415 V (A/kW) 125 A / 55 kW
AC-23 690 V (A/kW) 125 A / 110 kW
EAN 6419410395455
Kolor Standard
Liczba Pól 3
Obudowa T6
Operation Front-operated
Rozmiar przewodu (Cu) (mm2) / Rozmiar śruby 6-70
Stopień IP 65
Typ obudowy Sheet Steel
Typ rozłącznika Switch Fuse
Waga (kg) 20

Mittapiirustus

Product diagram
