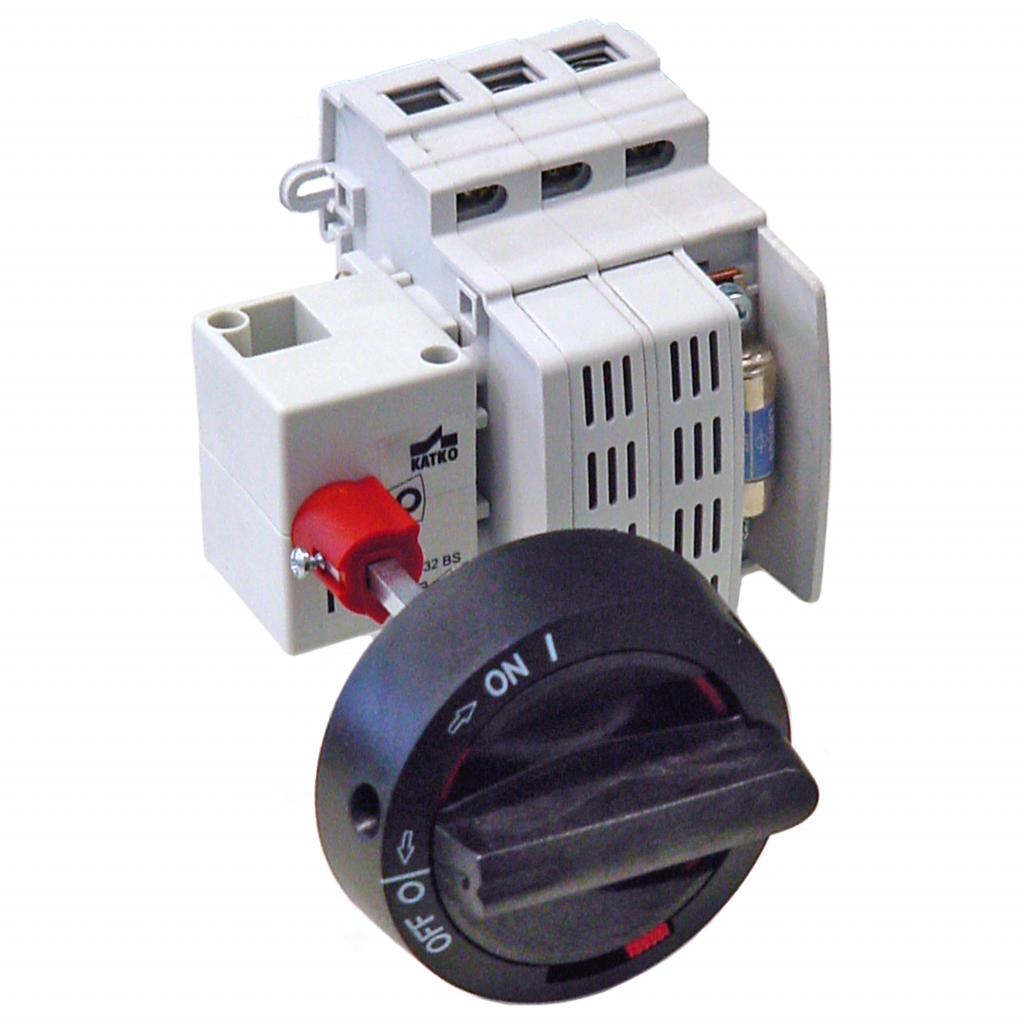

KVKE 332 L180AD11TLK10 SS

KVKE 332 L180AD11TLK10 SS

Katko FuseSafe switch fuses combine reliable switching and fuse protection in a compact, modular solution for professional electrical installations. Designed for flexible mounting and a wide range of configurations, FuseSafe supports efficient use of space while enhancing safety and operational clarity. Fuse covers and robust construction ensure dependable performance and long service life in demanding environments.

E-number FI
3600289
Rated operational current AC-22A 415V (A)
32

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

Depth
91.5 mm
ETIM Class
EC001040
E-number FI
3600289
Fuse type DIN
10x38
GTIN
6419410289013
Height
102 mm
Long product name
3-pole, Includes shaft 180 mm, Handle, Fuse covers
Max. term. torque (Nm)
2.2
Mech. endurance (no. of oper.)
20000
Nom. values w/cable size (mm²)
6
Number of poles
3
Product type
KVKE 332 L180AD11TLK10 SS
Rated breaking cap. ICN AC-23A 415V (A)
256
Rated fused short-ckt current back-up fuse opt 1 (A)
32
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
1000
Rated operational current AC-21A 415V (A)
32
Rated operational current AC-22A 415V (A)
32
Rated operational current AC-23A 415V (A)
32
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
15
Rated therm. current Ith (A)
32
Switch type
Switch Fuse
Terminals bolt size (Cu mm²)
2,5..35
Volume
1.008 l
Width
108 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
91.5 mm
Package size 1 GTIN code
6419410289013
Package size 1 height
102 mm
Package size 1 volume
1.008 l
Package size 1 width
108 mm
Sales unit
1
