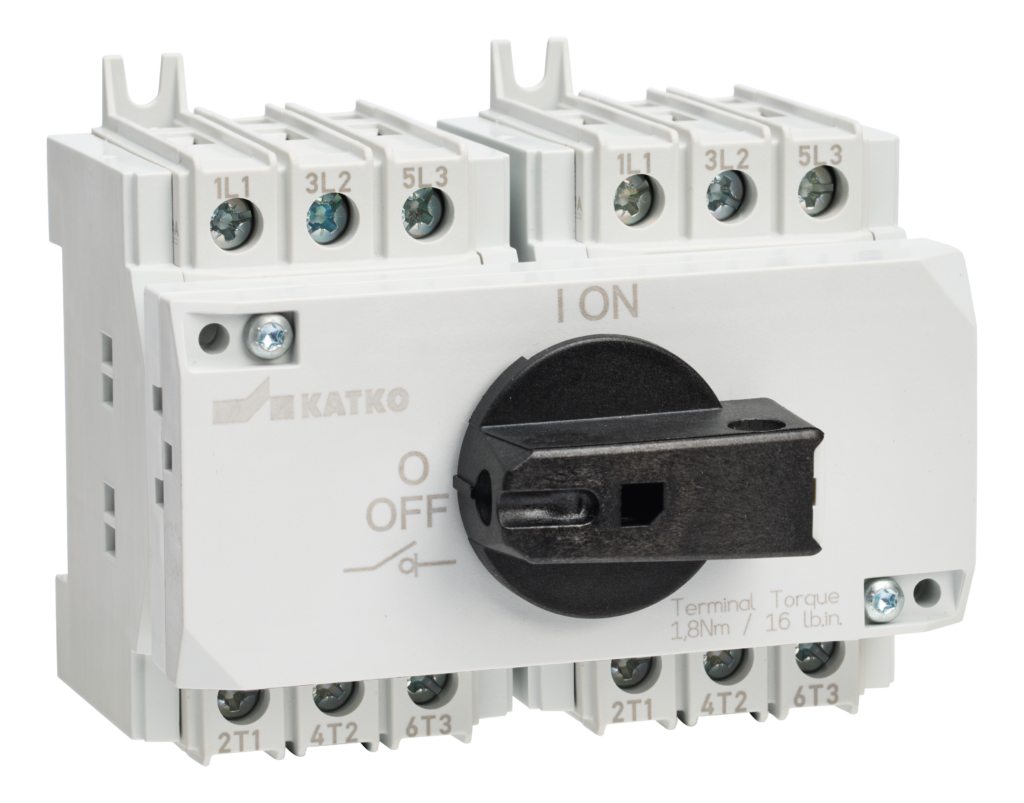

KU 640

Load break switch 6x40A

KU 640

Katko LoadSafe load break switches 16–40A are compact and versatile solutions designed for efficient load switching in smaller electrical systems. Available in 2-, 3-, 4-, 6- and 8-pole versions. The robust switch design and silver-contact technology ensure safe and durable operation in demanding environments.

The load break switches are VDE-approved and independently tested by third parties, ensuring compliance with international quality and safety standards. Manufactured in Finland, these switches and accessories provide high performance and installation efficiency, helping you build durable power distribution solutions.

Numer produktu
33800
E-number FI
3663103
Rated operational current AC-22A 415V (A)
40
Rated operational current AC-22A 690V (A)
40
Download Product Datasheet

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

delivery_time
10
Depth
79.7 mm
ETIM Class
EC000216
E-number FI
3663103
GTIN
6419410338001
Height
71 mm
Max. term. torque (Nm)
1.8
Mech. endurance (no. of oper.)
50000
Net weight
0.4031 kg
Nom. values w/cable size (mm²)
16
Number of poles
6
Product type
KU 640
Rated breaking cap. ICN AC-23A 415V (A)
320
Rated breaking cap. ICN AC-23A 500V (A)
200
Rated breaking cap. ICN AC-23A 690V (A)
200
Rated fused short-ckt current back-up fuse opt 1 (A)
40
Rated fused short-ckt current peak value (kA)
4.5
Rated fused short-ckt current RMS Ik opt 1 (kA)
25
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
40
Rated operational current AC-21A 500V (A)
40
Rated operational current AC-21A 690V (A)
40
Rated operational current AC-22A 415V (A)
40
Rated operational current AC-22A 500V (A)
40
Rated operational current AC-22A 690V (A)
40
Rated operational current AC-23A 415V (A)
40
Rated operational current AC-23A 500V (A)
25
Rated operational current AC-23A 690V (A)
25
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
22
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
15
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
22
Rated short-ckt. making cap. Icm 690V (kA)
1
Rated short-time withstand current 1s Icw 690V (kA)
0.7
Rated therm. current Ith (A)
63
Short product description
Load break switch 6x40A
Switch type
KU 340 / KU 440
Technical name
6x40A 690V AC-22
Terminals bolt size (Cu mm²)
1,5..16
Volume
0.5353 l
Width
94.6 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
79.7 mm
Package size 1 GTIN code
6419410338001
Package size 1 height
71 mm
Package size 1 volume
0.451 l
Package size 1 weight
0.4031 kg
Package size 1 width
79.7 mm
Sales unit
1
