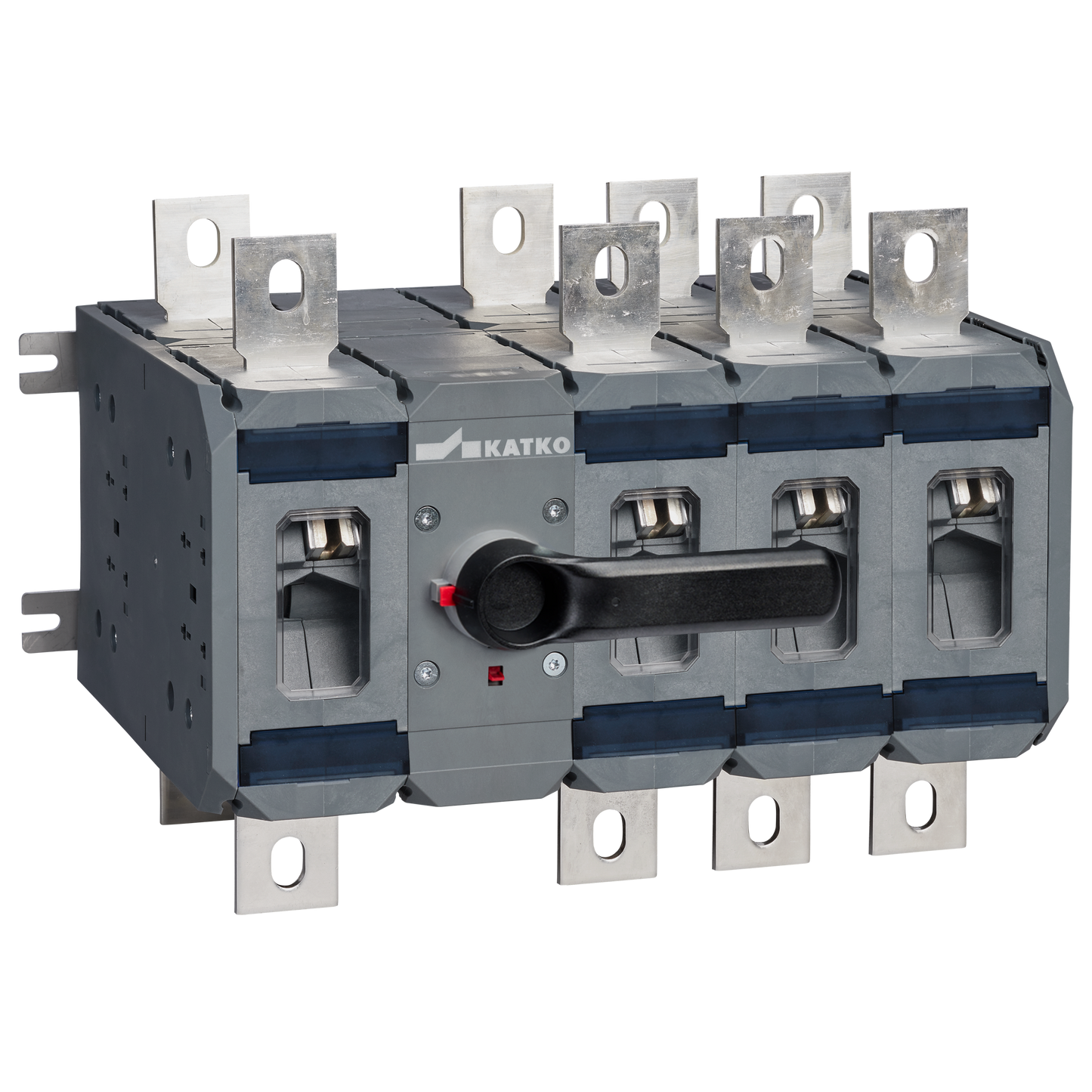

KU 4630CO SV

Change-over switch 1-0-2 4x630A with direct handle

KU 4630CO SV

Katko LoadSafe load break switches 160–800A are high-capacity solutions built for demanding industrial and power distribution networks up to 800 A. They support heavy-duty load switching, motor isolation and backup power transfer applications. These switches are engineered for reliability and durability, ensuring dependable operation where continuity and performance matter most.

E-number FI
3602889
GTIN
6419410484050
Rated operational current AC-22A 415V (A)
630
Rated operational current AC-22A 690V (A)
630

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

Depth
366 mm
ETIM Class
EC000216
E-number FI
3602889
GTIN
6419410484050
Height
283 mm
Long product name
Rotary switch, Changeover switch with 1-0-2 positions, 4-pole, Includes direct handle mechanism
Max. term. torque (Nm)
50..75
Mech. endurance (no. of oper.)
10000
Net weight
16.5764 kg
Nom. values w/cable size (mm²)
2*185
Number of poles
4
Product type
KU 4630CO SV
Rated breaking cap. ICN AC-23A 415V (A)
5040
Rated breaking cap. ICN AC-23A 500V (A)
5040
Rated breaking cap. ICN AC-23A 690V (A)
5040
Rated fused short-ckt current back-up fuse opt 1 (A)
800
Rated fused short-ckt current peak value (kA)
76
Rated fused short-ckt current RMS Ik opt 1 (kA)
100
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
12
Rated insulation volt. Ui (V)
1000
Rated operational current AC-21A 415V (A)
630
Rated operational current AC-21A 500V (A)
630
Rated operational current AC-21A 690V (A)
630
Rated operational current AC-22A 415V (A)
630
Rated operational current AC-22A 500V (A)
630
Rated operational current AC-22A 690V (A)
630
Rated operational current AC-23A 240V (A)
630
Rated operational current AC-23A 415V (A)
630
Rated operational current AC-23A 500V (A)
630
Rated operational current AC-23A 690V (A)
630
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
355
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
400
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
630
Rated short-ckt. making cap. Icm 690V (kA)
60
Rated short-time withstand current 1s Icw 1000V (kA)
28
Rated therm. current Ith (A)
630
Short product description
Change-over switch 1-0-2 4x630A with direct handle
Switch type
Load Break Switch
Technical name
4x630A 690V AC-22
Terminals bolt size (Cu mm²)
M12
Volume
26.8267 l
Width
259 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
366 mm
Package size 1 GTIN code
6419410484050
Package size 1 height
283 mm
Package size 1 volume
37.9095 l
Package size 1 weight
16.5764 kg
Package size 1 width
366 mm
Sales unit
1
