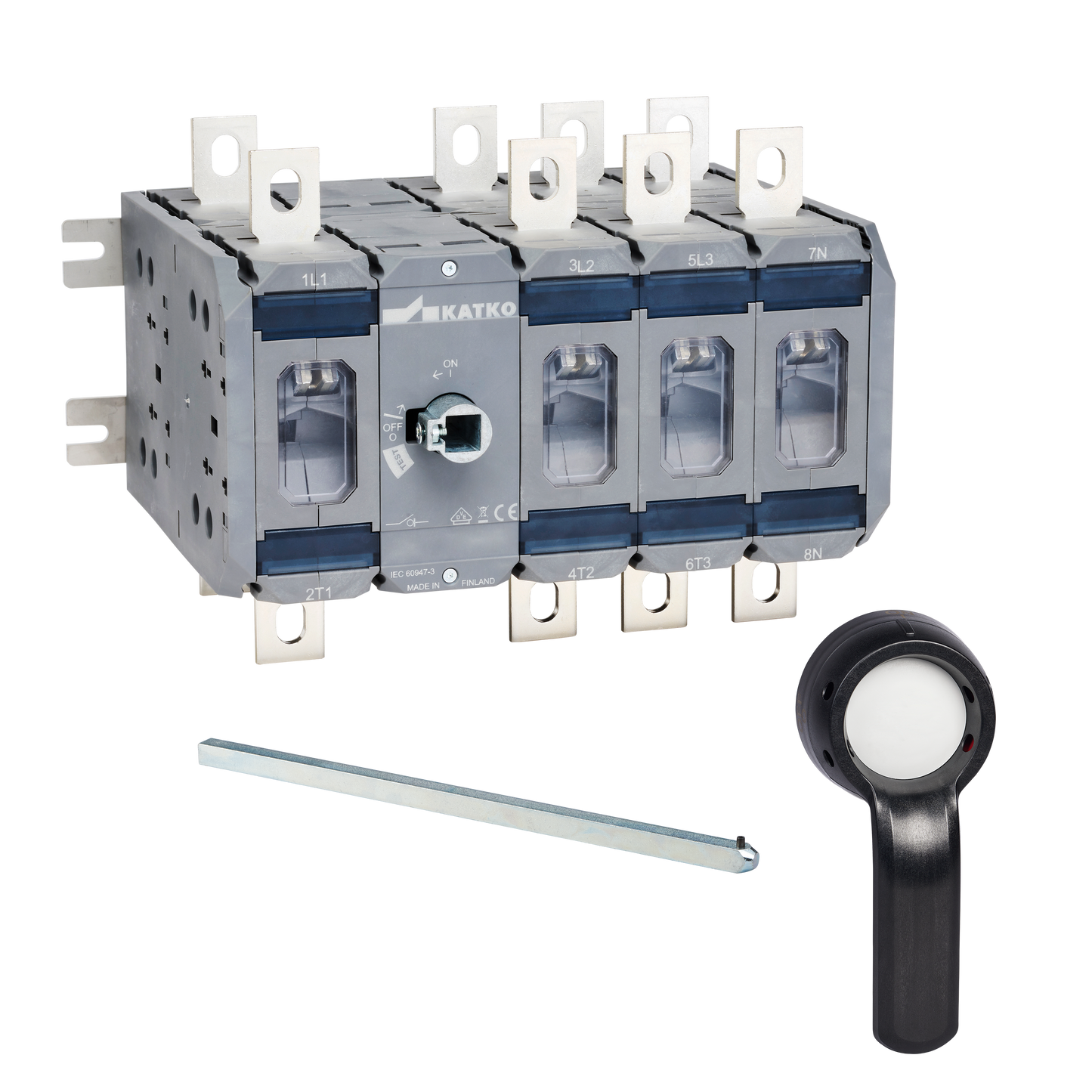

KU 4315CO LVK228LKX150

Change-over switch 1-0-2 4x315A

KU 4315CO LVK228LKX150

Katko LoadSafe load break switches 160–800A are high-capacity solutions built for demanding industrial and power distribution networks up to 800 A. They support heavy-duty load switching, motor isolation and backup power transfer applications. These switches are engineered for reliability and durability, ensuring dependable operation where continuity and performance matter most.

E-number FI
3602933
GTIN
6419410300268
Rated operational current AC-22A 415V (A)
315
Rated operational current AC-22A 690V (A)
315

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

Depth
185 mm
ETIM Class
EC000216
E-number FI
3602933
GTIN
6419410300268
Height
185 mm
Long product name
Rotary switch, Changeover switch with 1-0-2 positions, 4-pole, Includes shaft 228 mm
Max. term. torque (Nm)
30..44
Mech. endurance (no. of oper.)
10000
Net weight
7.6362 kg
Nom. values w/cable size (mm²)
185
Number of poles
4
Product type
KU 4315CO LVK228LKX150
Rated breaking cap. ICN AC-23A 415V (A)
2520
Rated breaking cap. ICN AC-23A 500V (A)
2520
Rated breaking cap. ICN AC-23A 690V (A)
2520
Rated fused short-ckt current back-up fuse opt 1 (A)
400
Rated fused short-ckt current peak value (kA)
42
Rated fused short-ckt current RMS Ik opt 1 (kA)
100
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
12
Rated insulation volt. Ui (V)
1000
Rated operational current AC-21A 415V (A)
315
Rated operational current AC-21A 500V (A)
315
Rated operational current AC-21A 690V (A)
315
Rated operational current AC-22A 415V (A)
315
Rated operational current AC-22A 500V (A)
315
Rated operational current AC-22A 690V (A)
315
Rated operational current AC-23A 415V (A)
315
Rated operational current AC-23A 500V (A)
315
Rated operational current AC-23A 690V (A)
315
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
160
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
200
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
315
Rated short-ckt. making cap. Icm 690V (kA)
27.5
Rated short-time withstand current 1s Icw 1000V (kA)
13.5
Rated therm. current Ith (A)
315
Short product description
Change-over switch 1-0-2 4x315A
Switch type
Load Break Switch
Technical name
4x315A 690V AC-22
Terminals bolt size (Cu mm²)
M10
Volume
8.4878 l
Width
248 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
185 mm
Package size 1 GTIN code
6419410300268
Package size 1 height
185 mm
Package size 1 volume
6.3316 l
Package size 1 weight
7.6362 kg
Package size 1 width
185 mm
Sales unit
1
