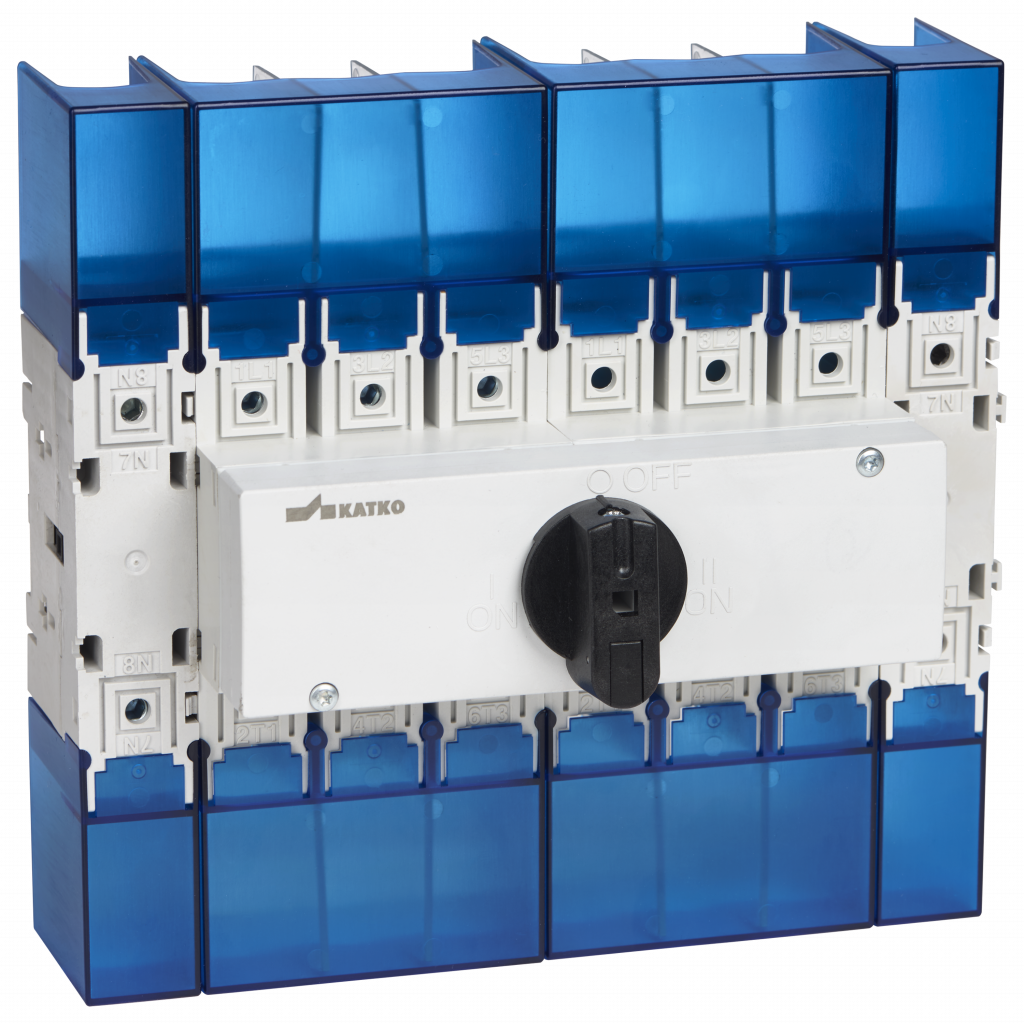

KU 4160CO

Change-over switch 1-0-2 4x160A

KU 4160CO

Katko LoadSafe changeover switches 160–800A are high-capacity solutions designed for demanding industrial and power distribution applications where continuity of supply is critical. They support reliable switching between power sources in high-current systems.

Built for durability and long-term performance, these switches deliver dependable operation in installations where safety, reliability and uptime cannot be compromised.

Numer produktu
20363
E-number FI
3600813
GTIN
6419410203637
Rated operational current AC-22A 415V (A)
160
Rated operational current AC-22A 690V (A)
160
Download Product Datasheet

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

delivery_time
10
Depth
100 mm
ETIM Class
EC000216
E-number FI
3600813
GTIN
6419410203637
Height
103 mm
Max. term. torque (Nm)
6
Mech. endurance (no. of oper.)
16000
Net weight
1.6071 kg
Nom. values w/cable size (mm²)
95
Number of poles
4
Product type
KU 4160CO
Rated breaking cap. ICN AC-23A 415V (A)
1280
Rated breaking cap. ICN AC-23A 500V (A)
800
Rated breaking cap. ICN AC-23A 690V (A)
800
Rated fused short-ckt current back-up fuse opt 1 (A)
160
Rated fused short-ckt current peak value (kA)
15
Rated fused short-ckt current RMS Ik opt 1 (kA)
65
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
160
Rated operational current AC-21A 500V (A)
160
Rated operational current AC-21A 690V (A)
160
Rated operational current AC-22A 415V (A)
160
Rated operational current AC-22A 500V (A)
160
Rated operational current AC-22A 690V (A)
160
Rated operational current AC-23A 415V (A)
160
Rated operational current AC-23A 500V (A)
100
Rated operational current AC-23A 690V (A)
100
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
90
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
55
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
90
Rated short-ckt. making cap. Icm 690V (kA)
8
Rated short-time withstand current 1s Icw 690V (kA)
5
Rated therm. current Ith (A)
200
Short product description
Change-over switch 1-0-2 4x160A
Switch type
Load Break Switch
Technical name
4x160A 690V AC-22
Terminals bolt size (Cu mm²)
6..70
Volume
1.9364 l
Width
188 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
100 mm
Package size 1 GTIN code
6419410203637
Package size 1 height
103 mm
Package size 1 volume
1.03 l
Package size 1 weight
1.6071 kg
Package size 1 width
100 mm
Sales unit
1

Downloadables

Unlock content

We continuously improve our products; specifications, features and appearances may change without prior notice.
