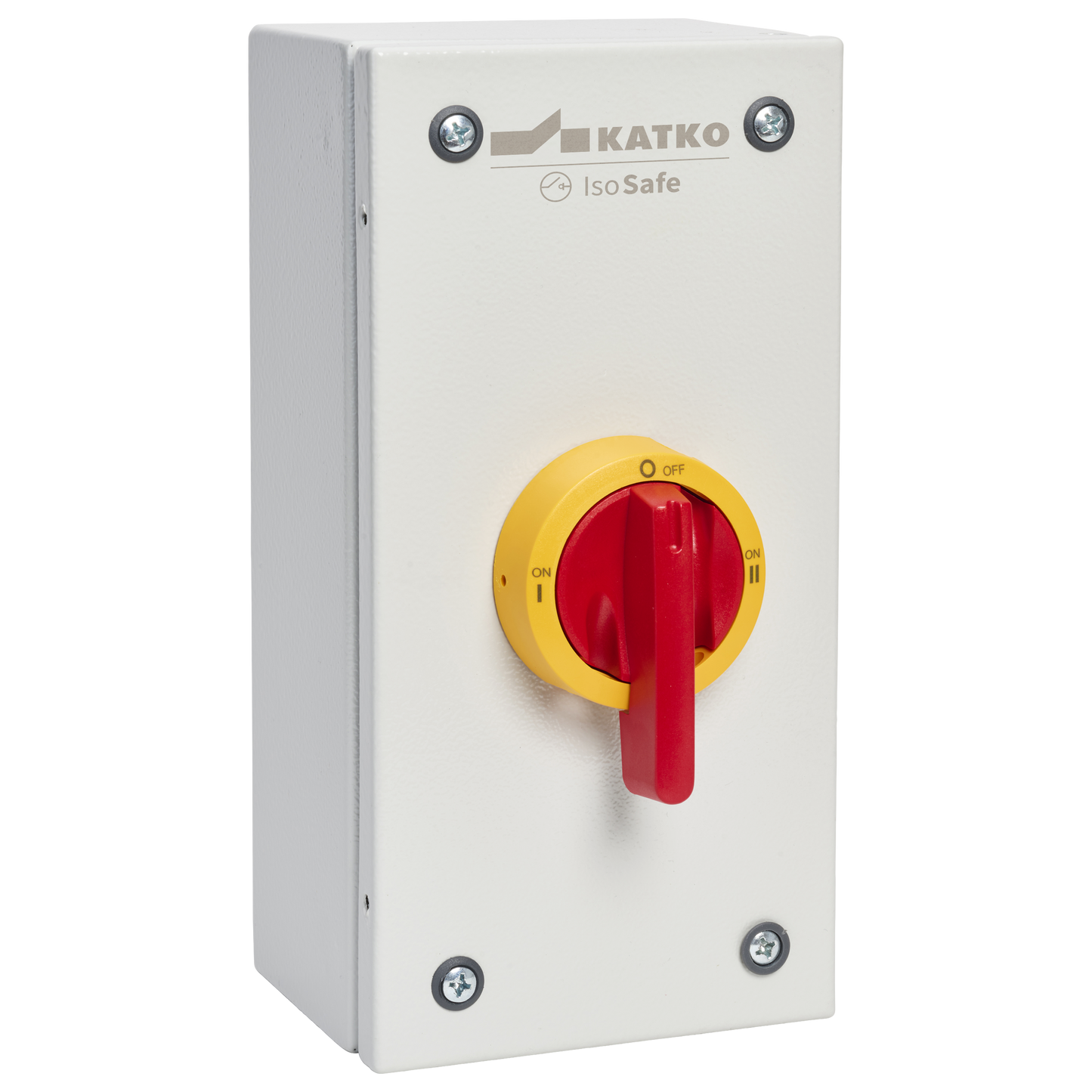

Katko UL98 listed enclosed disconnects (60-400A) are engineered for applications requiring the highest level of disconnect performance under UL standards. They are designed for high-performance switching and long-term reliability.
Used in industrial and commercial power systems, these disconnects ensure safe operation where strict compliance and durability are essential.
GTIN
Ampere rating 600V
Enclosure type
Enclosure
Technical data
Ampere rating 600V
60.0
Depth
120 mm
EMC
false
Enclosure
T4 (150 x 300 x 120 mm)
Enclosure type
Painted sheet steel
ETIM Class
EC000216
GTIN
6419410315774
Height
300 mm
HP 208V
2.0
HP 240V
25.0
HP 480V
50.0
HP 600V
75.0
IP rating
IP66
Long product name
UL98-listed, 4-pole, Yellow-red handle, Sheet steel enclosure; W150 x H300 x D120
Net weight
3.6695 kg
Number of poles
4
Product type
KET 460UL98 YR T4
Short product description
Manual motor controller 4x60A
Technical name
4x40A 400V 22kW
UL
UL98
Volume
5.4 l
Width
150 mm
Wire size Cu
8-1/0 AWG
Dimensional drawing
Logistical data
Package size 1 depth
120 mm
Package size 1 GTIN code
6419410315774
Package size 1 height
200 mm
Package size 1 volume
3.6 l
Package size 1 weight
3.6695 kg
Package size 1 width
150 mm
Downloadables
- Dimensional drawings media (IsoSafe_T4_Dim.png)
- Brochures (Katko IsoSafe Catalogue - Safety Switches & Isolators)
- Brochures (Katko IsoSafe Tuoteluettelo - Turvakytkimet FI)
- Brochures (Katalog Wyrobów KATKO IsoSafe – Wyłączniki bezpieczeństwa i rozłączniki PL)
- Brochures (Katko IsoSafe UL Listed Selection Brochure EN)
- Brochures (Katko IsoSafe Brochure – UL 98 Listed Open and Enclosed Disconnect Switches EN)
- DWG files (IsoSafe_T4_LK10.zip)
- DWG files (IsoSafe_T4_LK11.zip)
- Installation manuals (KATKO_IsoSafe_T4_installation_manual_108_en.pdf)
