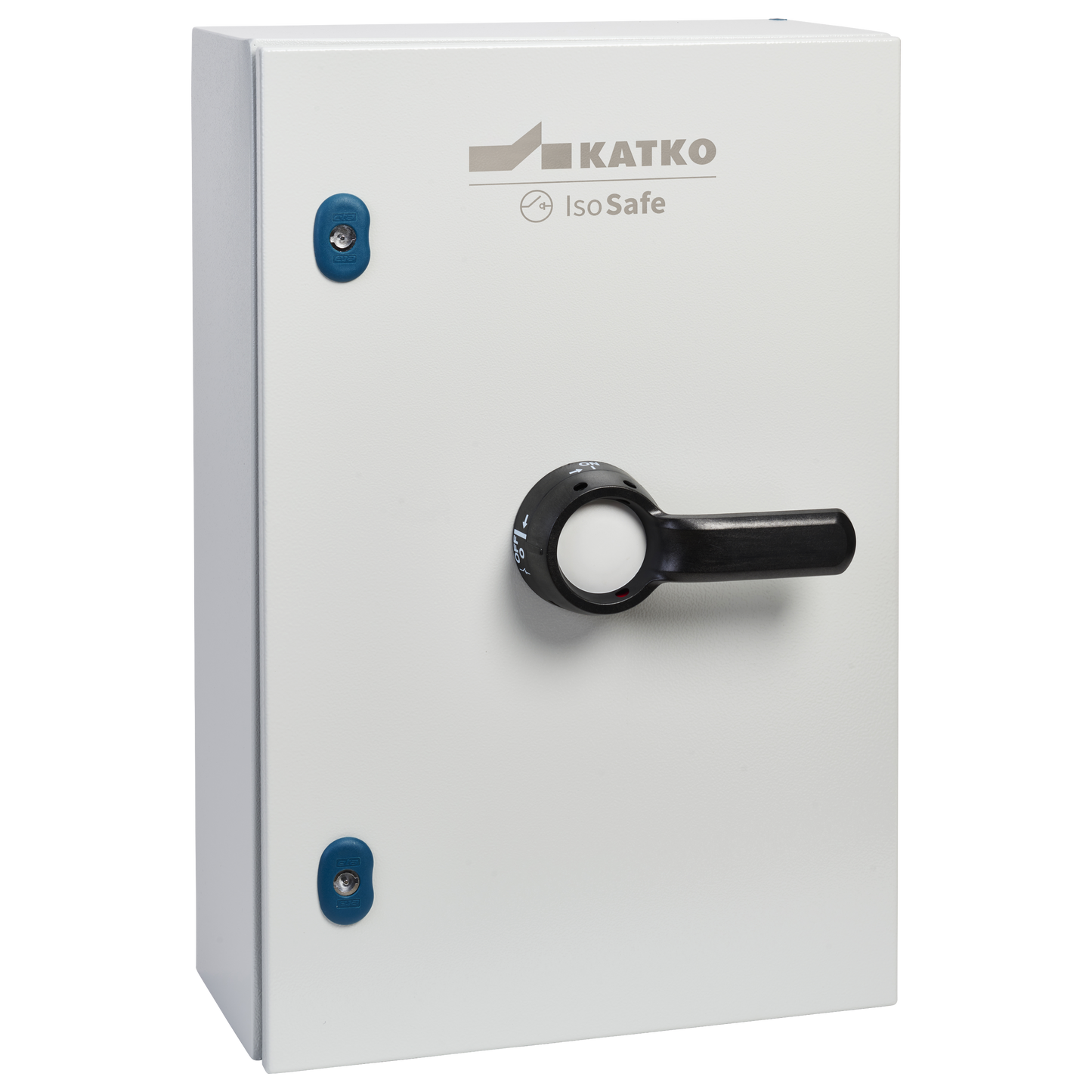

KET 3315 T6EMC 2XM63MEMC

Isolating switch EMC 3x315A IP66

KET 3315 T6EMC 2XM63MEMC

Katko EMC isolators (10-1600A) are engineered to ensure reliable isolation while maintaining electromagnetic compatibility in sensitive installations. They are designed to meet the requirements of environments where electrical interference must be carefully controlled.

By combining effective shielding with durable construction, EMC isolators support stable system performance in industrial, commercial, and infrastructure applications where EMC compliance is critical.

GTIN
6419410336670
Rated operational current AC-23A 415V (A)
315
Enclosure type
Painted sheet steel
Enclosure
T6 (400 x 600 x 200 mm)

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

Cable entries
2 x M63 (34,0-44,0mm), metal EMC
Depth
200 mm
EMC
true
Enclosure
T6 (400 x 600 x 200 mm)
Enclosure type
Painted sheet steel
ETIM Class
EC000216
GTIN
6419410336670
Height
600 mm
IP rating
IP66
Long product name
3-pole, Sheet steel enclosure; W400 x H600 x D200,EMC shielded, Cable entries: 2 x M63 (34,0-44,0mm), metal EMC
Max. term. torque (Nm)
30..44
Mech. endurance (no. of oper.)
10000
Net weight
18.8763 kg
Nom. values w/cable size (mm²)
185
Number of poles
3
Product type
KET 3315 T6EMC 2XM63MEMC
Rated breaking cap. ICN AC-23A 415V (A)
2520
Rated breaking cap. ICN AC-23A 500V (A)
2520
Rated breaking cap. ICN AC-23A 690V (A)
2520
Rated fused short-ckt current back-up fuse opt 1 (A)
400
Rated fused short-ckt current peak value (kA)
42
Rated fused short-ckt current RMS Ik opt 1 (kA)
100
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
12
Rated insulation volt. Ui (V)
1000
Rated operational current AC-21A 415V (A)
315
Rated operational current AC-21A 500V (A)
315
Rated operational current AC-21A 690V (A)
315
Rated operational current AC-22A 415V (A)
315
Rated operational current AC-22A 500V (A)
315
Rated operational current AC-22A 690V (A)
315
Rated operational current AC-23A 415V (A)
315
Rated operational current AC-23A 500V (A)
315
Rated operational current AC-23A 690V (A)
315
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
160
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
200
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
315
Rated short-ckt. making cap. Icm 415V (kA)
11.4
Rated short-ckt. making cap. Icm 690V (kA)
27.5
Rated short-time withstand current 1s Icw 1000V (kA)
13.5
Rated short-time withstand current 1s Icw 415V (kA)
6.5
Rated therm. current Ithe (A)
315
Rated therm. current Ith (A)
315
Short product description
Isolating switch EMC 3x315A IP66
Switch type
Load Break Switch
Technical name
3x315A 400V 160kW
Terminals bolt size (Cu mm²)
M10
Volume
48 l
Width
400 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
108 mm
Package size 1 GTIN code
6419410336670
Package size 1 height
262 mm
Package size 1 volume
4.584 l
Package size 1 weight
18.8763 kg
Package size 1 width
162 mm
Sales unit
1
