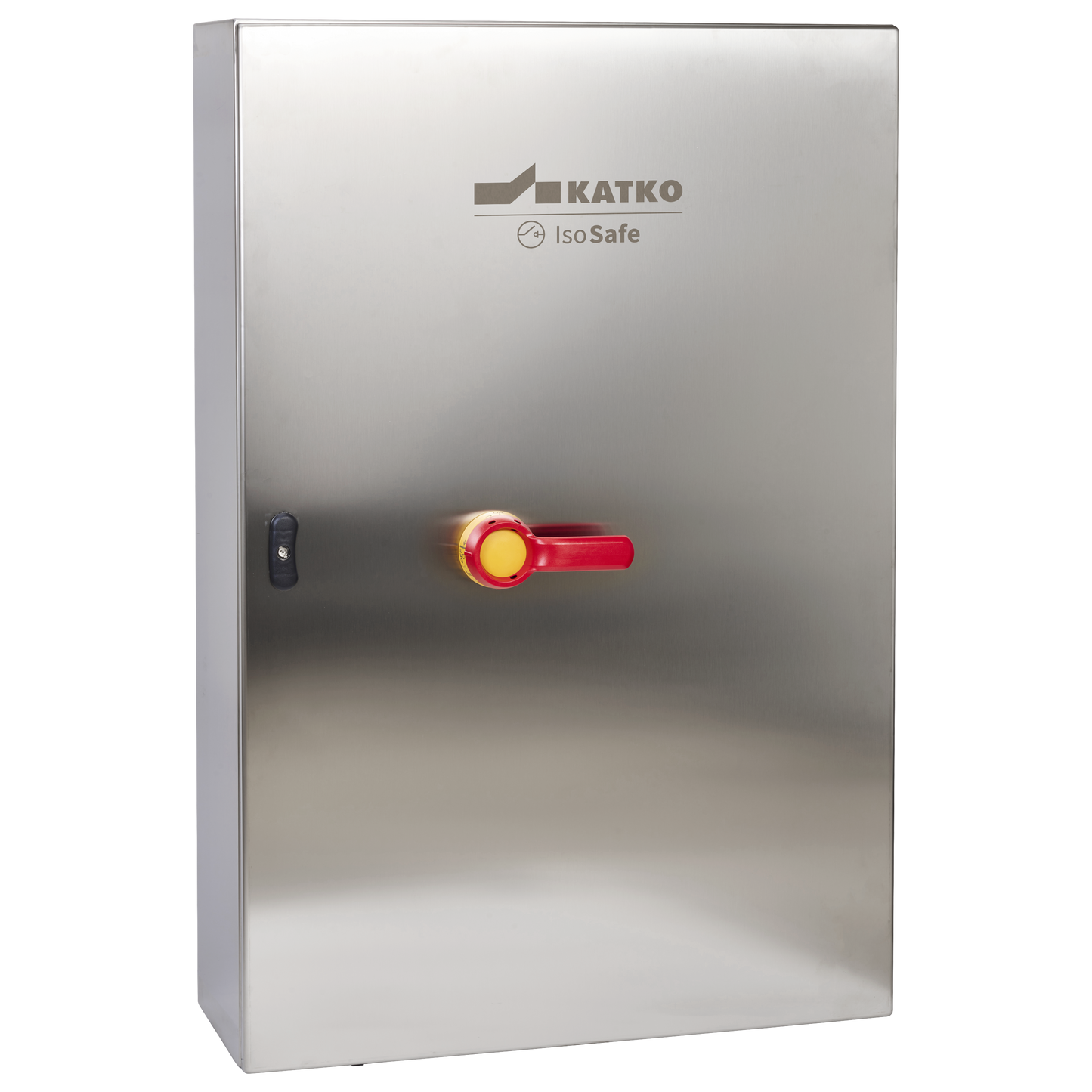

Isolating switch 3xA IP66

KER 31250 YR R10

Isolating switch 3xA IP66

Katko IsoSafe stainless steel enclosed safety switches are available in AISI 304 and AISI 316L, providing reliable isolation for demanding environments where corrosion resistance, hygiene and long service life are essential. The stainless steel enclosure withstands moisture, chemicals and aggressive cleaning agents, making it well suited for food, pharmaceutical and process industry applications, as well as harsh industrial environments.

A practical design and dependable safety features support safe operation and easy maintenance. Designed and manufactured in Finland, IsoSafe stainless steel switches are based on Katko’s extensive experience in demanding applications, meet international safety and quality standards, and deliver reliable electrical distribution where durability and performance matter.

GTIN
6419410305690
Enclosure type
Stainless steel (AISI 304)
Enclosure
R10 (800 x 1200 x 300 mm)
Pokaż kompletne dane

Product details and documents

Technical data

Depth
300 mm
EMC
false
Enclosure
R10 (800 x 1200 x 300 mm)
Enclosure type
Stainless steel (AISI 304)
ETIM Class
EC000216
GTIN
6419410305690
Height
1200 mm
IP rating
IP66
Long product name
3-pole, Yellow-red handle, Stainless steel enclosure (AISI 304); W800 x H1200 x D300
Net weight
67.1883 kg
Number of poles
3
Product type
KER 31250 YR R10
Short product description
Isolating switch 3xA IP66
Technical name
3x1250A 400V 710kW
Volume
288 l
Width
800 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
124 mm
Package size 1 GTIN code
6419410349991
Package size 1 height
369 mm
Package size 1 volume
7.321 l
Package size 1 weight
3.374 kg
Package size 1 width
160 mm
Sales unit
1
