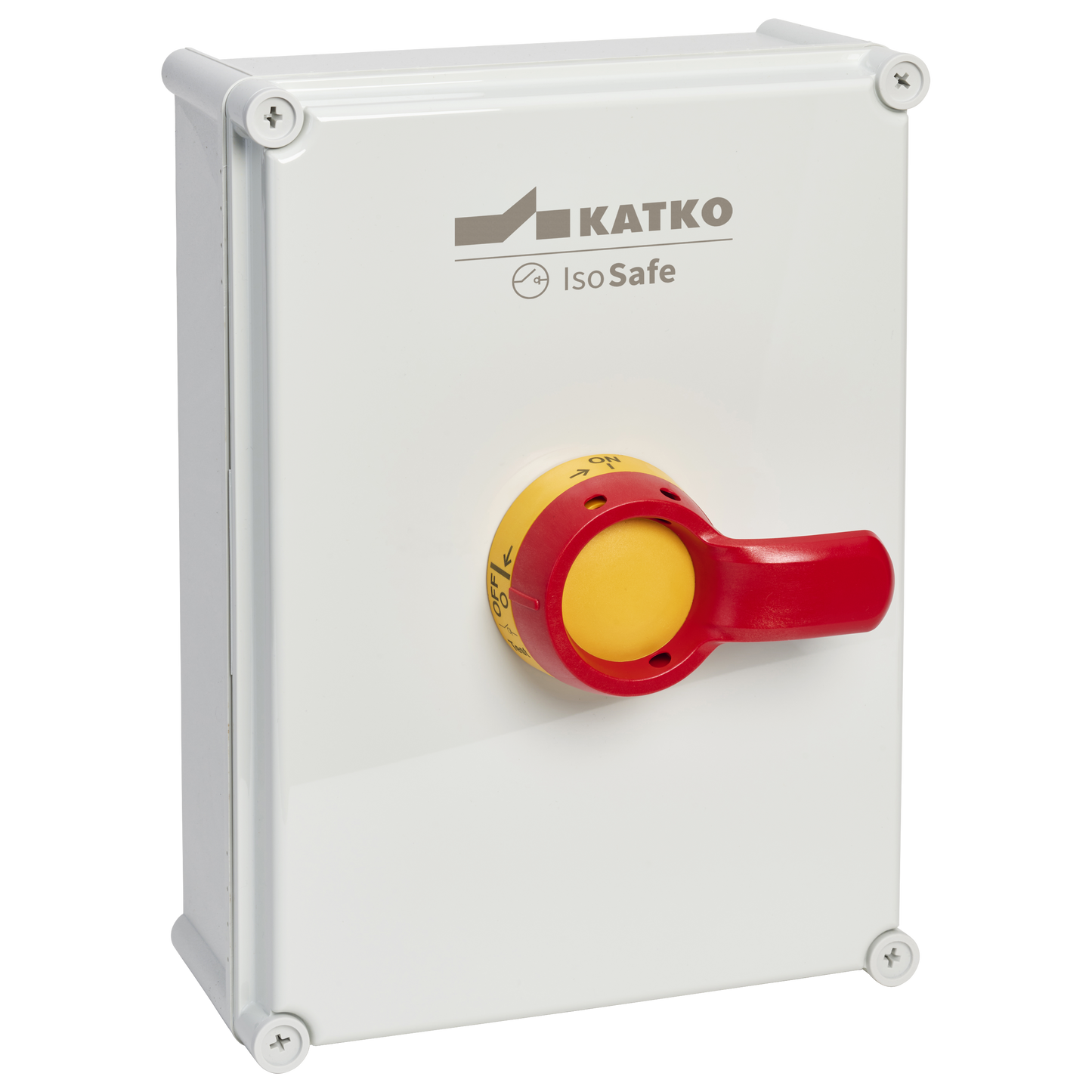

Isolating switch 8x160A IP66

KEM 8160 YR MF11

Isolating switch 8x160A IP66

Katko IsoSafe polycarbonate enclosed safety switches are designed for real-world applications where safety and reliability are essential, from demanding industrial environments to ordinary buildings. The durable polycarbonate enclosure provides high protection and excellent insulation while resisting UV radiation and many chemicals, ensuring reliable performance both indoors and outdoors.

Advanced safety features, including self-extinguishing materials, secure door interlocking defeat mechanisms and a padlockable handle, support safe operation and maintenance. Designed and manufactured in Finland, IsoSafe switches reflect decades of application-driven engineering and are trusted in installations where dependable electrical distribution is critical.

GTIN
6419410319758
Rated operational current AC-23A 415V (A)
160
Enclosure type
Polycarbonate
Enclosure
MF11 (280 x 380 x 130 mm)
Pokaż kompletne dane

Product details and documents

Technical data

Depth
130 mm
EMC
false
Enclosure
MF11 (280 x 380 x 130 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
GTIN
6419410319758
Height
380 mm
IP rating
IP66
Long product name
8-pole, Yellow-red handle, Polycarbonate enclosure; W280 x H380 x D130
Max. term. torque (Nm)
6
Mech. endurance (no. of oper.)
16000
Net weight
3.5501 kg
Nom. values w/cable size (mm²)
95
Number of poles
8
Product type
KEM 8160 YR MF11
Rated breaking cap. ICN AC-23A 415V (A)
1280
Rated breaking cap. ICN AC-23A 500V (A)
800
Rated breaking cap. ICN AC-23A 690V (A)
800
Rated fused short-ckt current back-up fuse opt 1 (A)
160
Rated fused short-ckt current peak value (kA)
15
Rated fused short-ckt current RMS Ik opt 1 (kA)
65
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
160
Rated operational current AC-21A 500V (A)
160
Rated operational current AC-21A 690V (A)
160
Rated operational current AC-22A 415V (A)
160
Rated operational current AC-22A 500V (A)
160
Rated operational current AC-22A 690V (A)
160
Rated operational current AC-23A 415V (A)
160
Rated operational current AC-23A 500V (A)
100
Rated operational current AC-23A 690V (A)
100
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
90
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
55
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
90
Rated short-ckt. making cap. Icm 690V (kA)
8
Rated short-time withstand current 1s Icw 690V (kA)
5
Rated therm. current Ithe (A)
200
Rated therm. current Ith (A)
200
Short product description
Isolating switch 8x160A IP66
Switch type
Load Break Switch
Technical name
8x160A 400V 90kW
Terminals bolt size (Cu mm²)
6..70
Volume
13.832 l
Width
280 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
96 mm
Package size 1 GTIN code
6419410353783
Package size 1 height
190 mm
Package size 1 volume
2.6266 l
Package size 1 weight
0.7336 kg
Package size 1 width
144 mm
Sales unit
1
