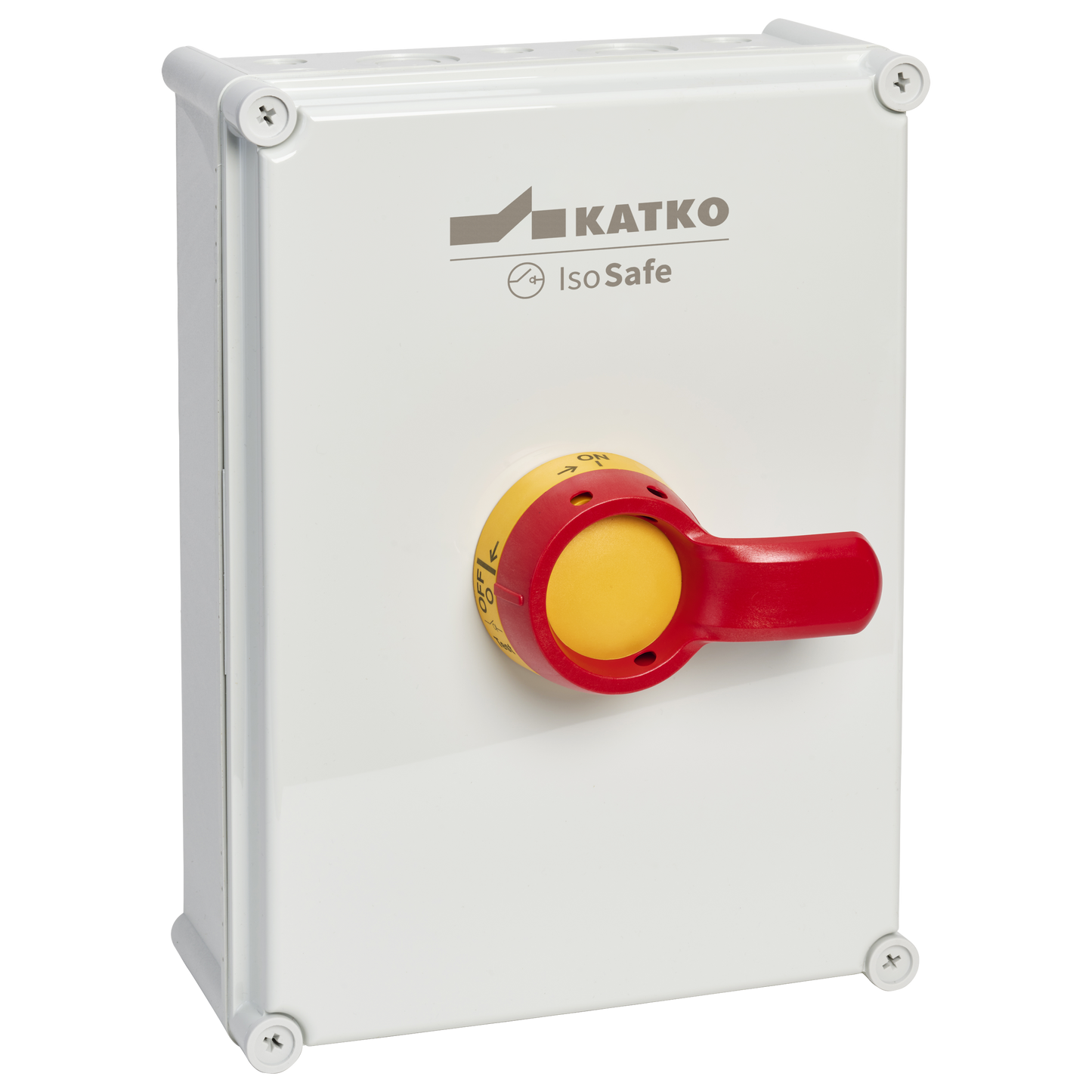

KEM 6100L YR MF11UL

Manual motor controller 6x100A

KEM 6100L YR MF11UL

Katko UL/cUL listed polycarbonate enclosed disconnect switches are designed for demanding industrial and commercial applications where safety, compliance and reliable disconnection are essential. Featuring a Type 4X polycarbonate enclosure, they provide excellent corrosion resistance, electrical insulation and UV stability, ensuring dependable operation in both indoor and outdoor environments.

The switches support across-the-line motor starting up to 75 HP at 600 V and are suitable for a wide range of motor and load disconnect applications. Certified according to UL and CSA requirements and compliant with UL 60947-4-1A, they meet the expectations of North American installations where performance and regulatory compliance are critical.

GTIN
6419410351178
Ampere rating 600V
100
Enclosure type
Polycarbonate
Enclosure
MF11UL (280 x 380 x 130 mm)

Looking for more information about this product?

Our team is here to help.

Pokaż kompletne dane

Product details and documents

Technical data

Ampere rating 600V
100.0
Depth
130 mm
EMC
false
Enclosure
MF11UL (280 x 380 x 130 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
GTIN
6419410351178
Height
380 mm
HP 208V
15.0
HP 415V
20.0
HP 480V
40.0
HP 600V
50.0
Long product name
6-pole, Yellow-red handle, Polycarbonate enclosure; W280 x H380 x D130
Net weight
3.9576 kg
Number of poles
6
Product type
KEM 6100L YR MF11UL
Short product description
Manual motor controller 6x100A
Technical name
6x100A 400V 55kW
UL
UL 60947-4-1A
Volume
13.832 l
Width
280 mm
Wire size Cu
8-1/0AWG

Dimensional drawing

Logistical data

Package size 1 GTIN code
6419410351178
Package size 1 weight
3.9576 kg

Not finding what you're looking for? We're here to help!

We can assist you with technical support, quote or tailoring options for this product
