Katko UL98 listed enclosed disconnects (60-400A) are engineered for applications requiring the highest level of disconnect performance under UL standards. They are designed for high-performance switching and long-term reliability.
Used in industrial and commercial power systems, these disconnects ensure safe operation where strict compliance and durability are essential.
GTIN
Ampere rating 600V
Enclosure type
Enclosure
Technical data
Ampere rating 600V
100.0
Depth
130 mm
EMC
false
Enclosure
MF11UL (280 x 380 x 130 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
GTIN
6419410315750
Height
380 mm
HP 208V
2.0
HP 240V
25.0
HP 480V
50.0
HP 600V
75.0
Long product name

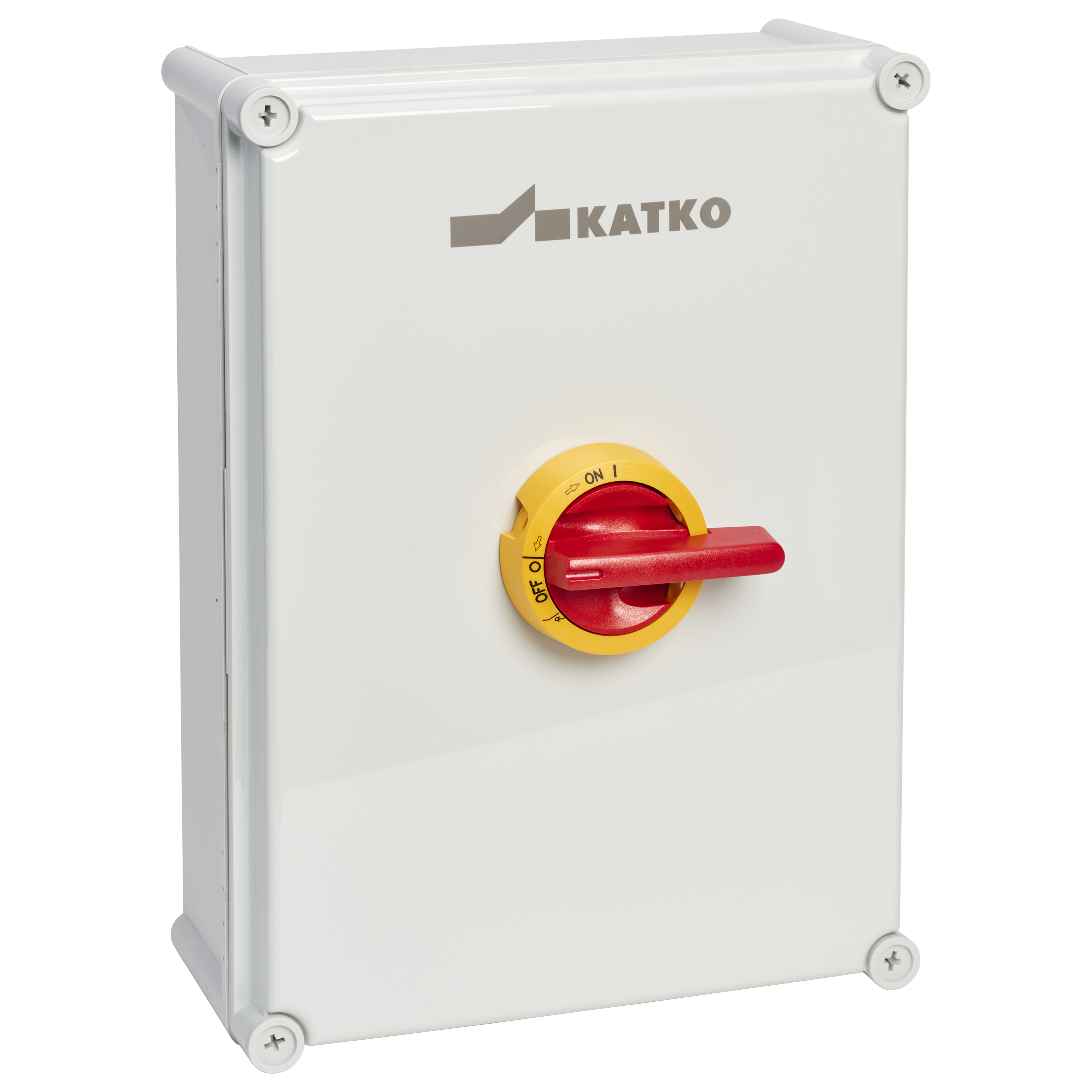

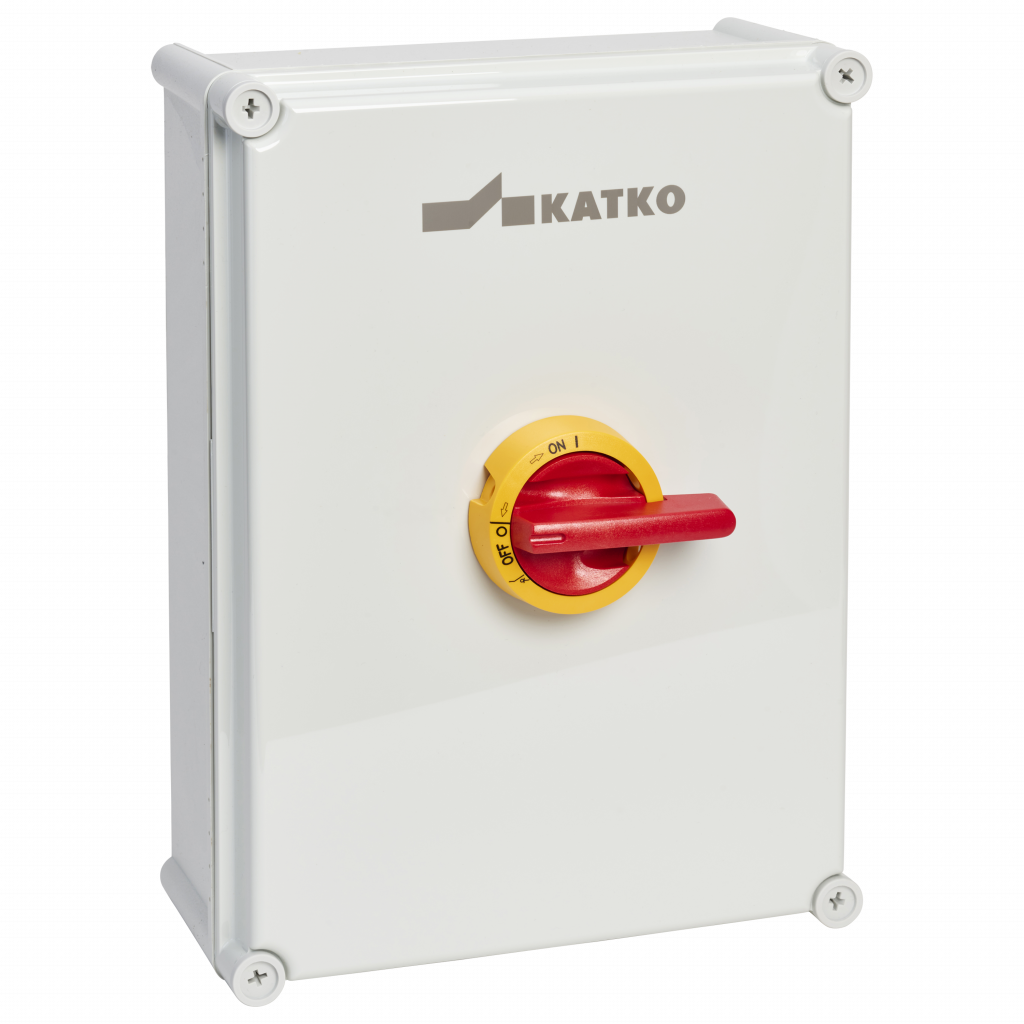

UL98-listed, 4-pole, Yellow-red handle, Polycarbonate enclosure; W280 x H380 x D130
Net weight
3.3336 kg
Number of poles
4
Product type

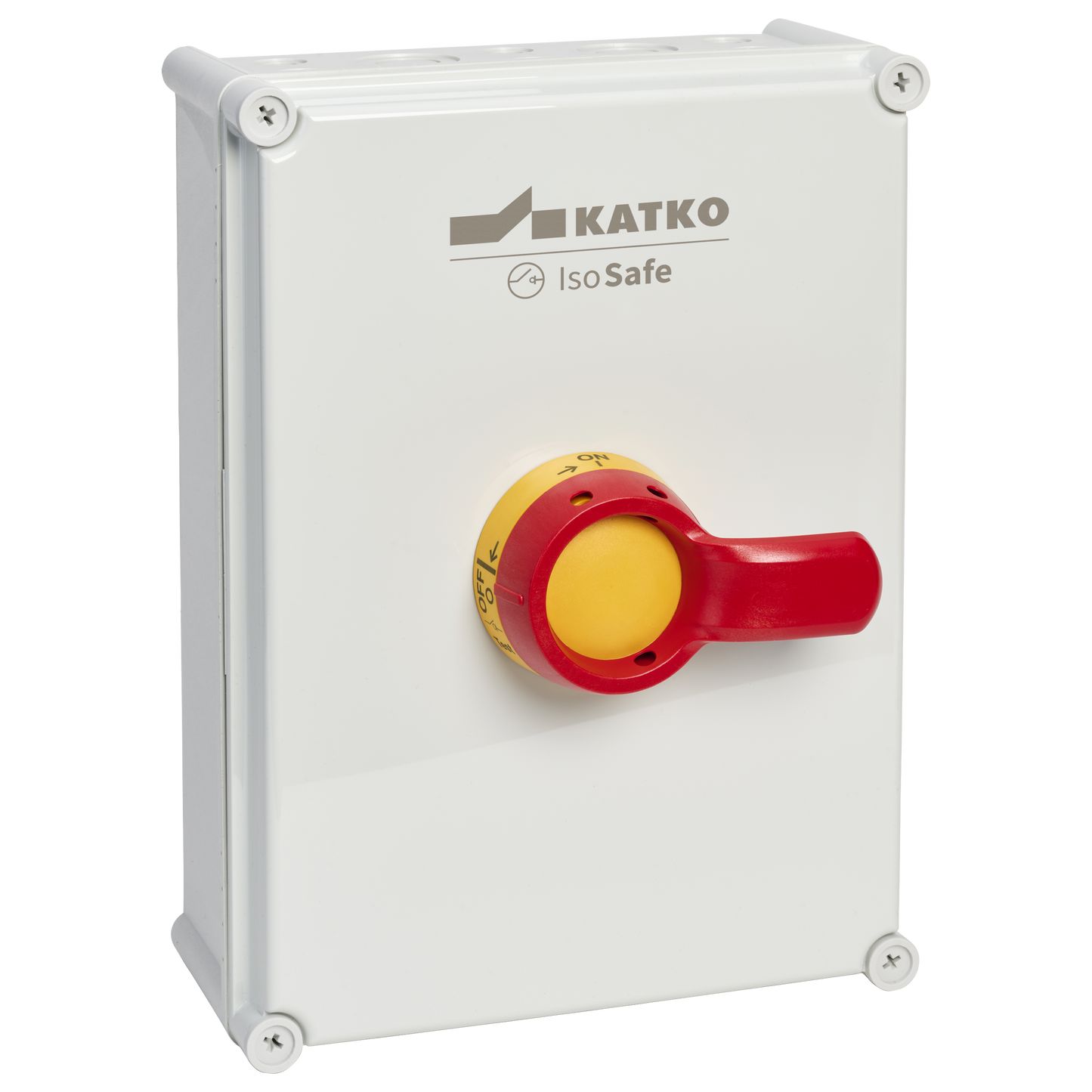

KEM 4100UL98 YR MF11UL
Short product description
Manual motor controller 4x100A
Technical name
4x100A 400V 55kW
UL
UL98
Volume
13.832 l
Width
280 mm
Wire size Cu
8-1/0 AWG
Dimensional drawing
Logistical data
Package size 1 depth
250 mm
Package size 1 GTIN code
6419410315750
Package size 1 height
800 mm
Package size 1 volume
120 l
Package size 1 weight
3.3336 kg
Package size 1 width
600 mm
Downloadables
- Dimensional drawings media (IsoSafe_MF11UL_Dim.png)
- Brochures (Katko IsoSafe Catalogue - Safety Switches & Isolators)
- Brochures (Katko IsoSafe Tuoteluettelo - Turvakytkimet FI)
- Brochures (Katalog Wyrobów KATKO IsoSafe – Wyłączniki bezpieczeństwa i rozłączniki PL)
- Brochures (Katko IsoSafe UL Listed Selection Brochure EN)
- Brochures (Katko IsoSafe Brochure – UL 98 Listed Open and Enclosed Disconnect Switches EN)
- STEP files (IsoSafe_MF11UL_LK11.zip)
- DWG files (IsoSafe_MF11UL.zip)
