Dane mogą ulec zmianie bez powiadomienia. Zawsze potwierdź dane u swojego sprzedawcy.

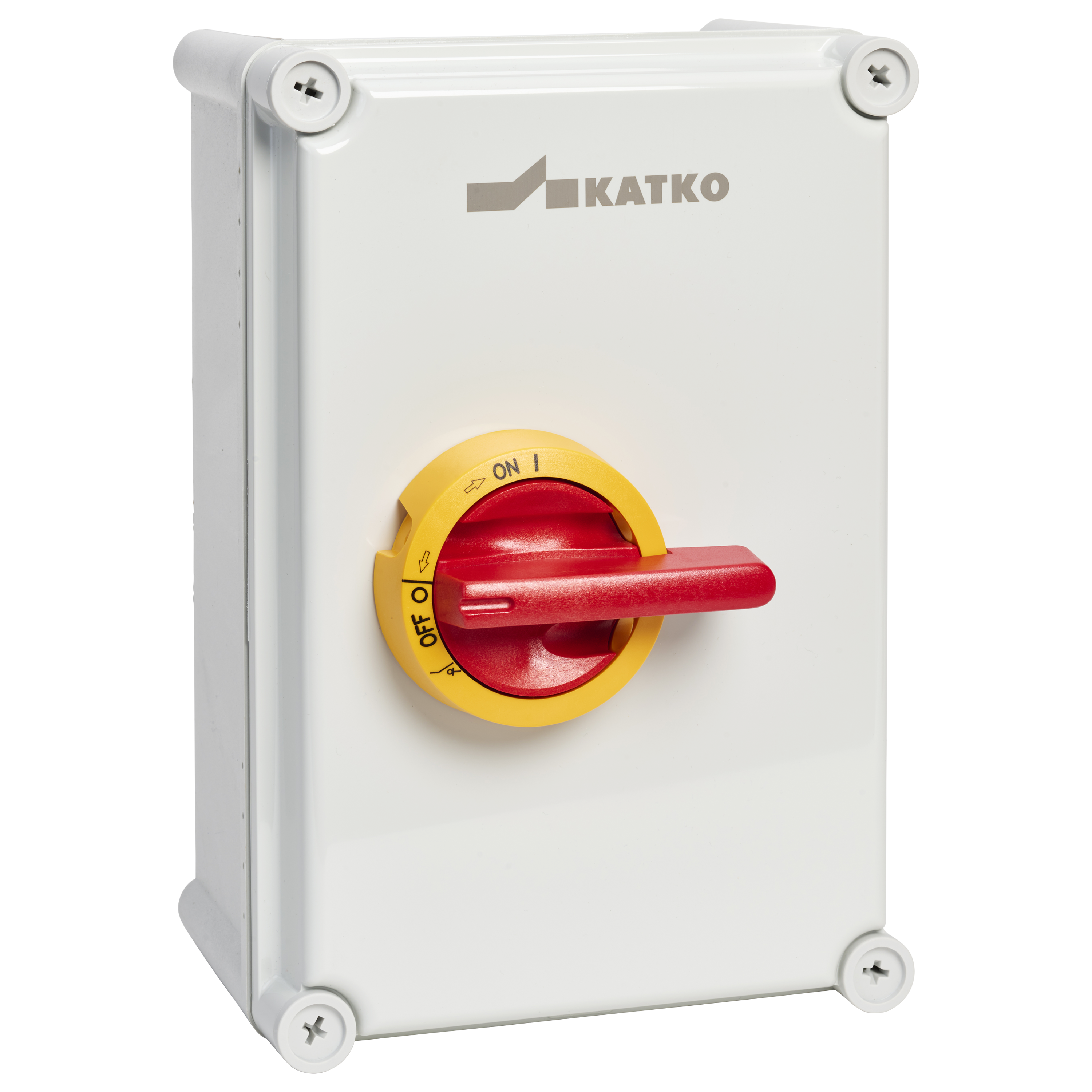

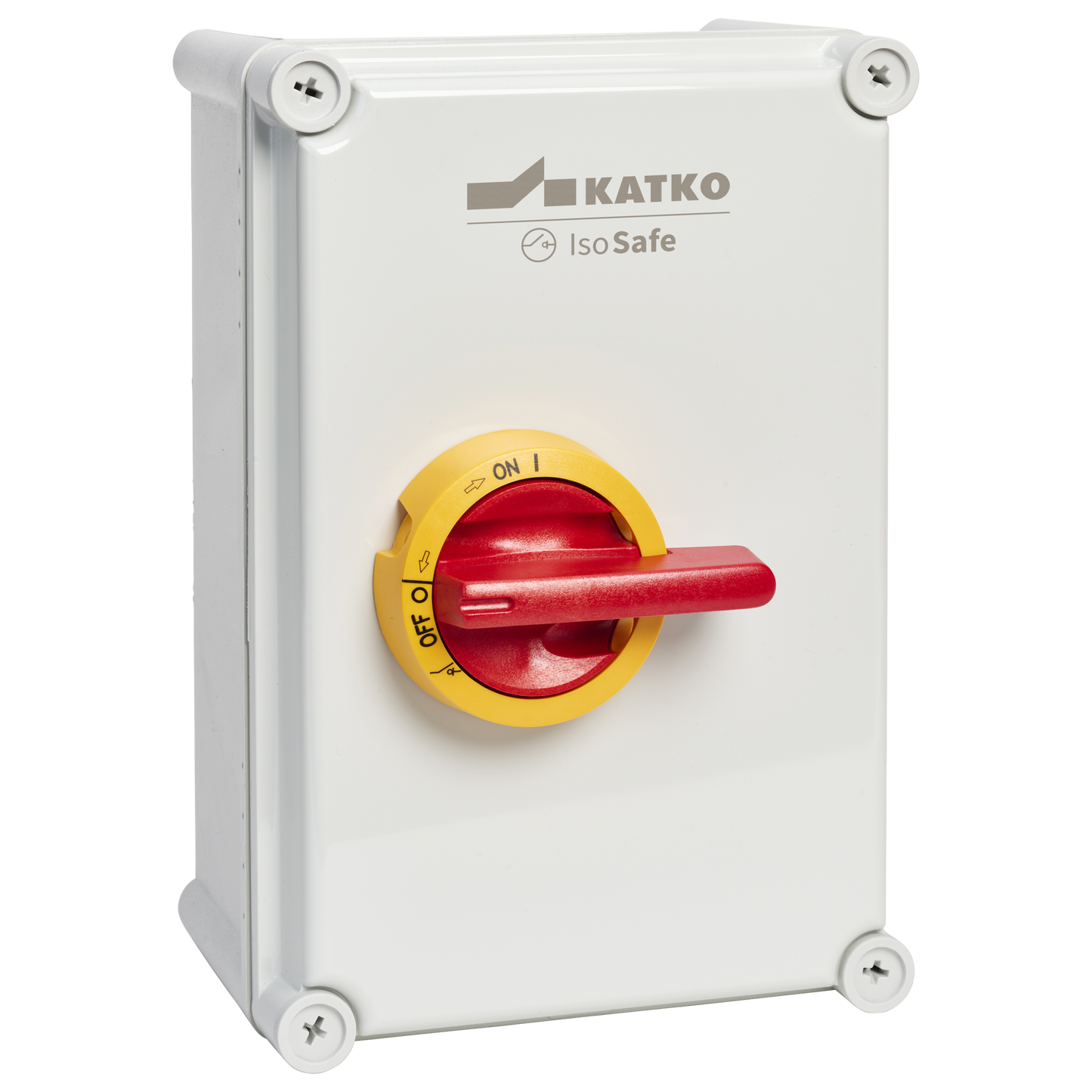

KEM 360UL98 YR MF10
Wyłączniki w obudowach poliwęglanowych, ze stali nierdzewnej, z blachy stalowej 60-400A cerytyfikowane UL98
Versatile and durable motor disconnect switches designed for local motor control in demanding environments. Available in various enclosure materials, including polycarbonate, stainless steel, and sheet steel. These switches offer reliable performance, high quality, and enhanced safety, making them ideal for industrial applications and harsh conditions.
- Can be used locally at the motor
- General use rating 30 – 400A / 600V AC
- NEMA: Type 1, 12, 3R, 4X (polycarbonate (MF10 & MF11UL) and AISI 316L stainless steel (R4B & R5) enclosures)
- NEMA: Type 1, 12, 3R, 4 (sheet steel (T4, T5, T7 & T10A) enclosures)
- Resistant to chemicals – all enclosure types
- Corrosion resistant – stainless steel and sheet steel enclosures
- UV resistant – polycarbonate and sheet steel enclosures
- Padlockable
- Also available: Enclosed disconnect switches (30–100A) with 6–8 poles and as change-over switches.
Szczegóły produktu
| SKU | KEM 360UL98 YR MF10 |
|---|---|
| EAN | 6419410315729 |
| HP 208V | 1,5HP |
| HP 240V | 20HP |
| HP 480V | 40HP |
| HP 600V | 60HP |
| Klasyfikacja NEMA | 4X |
| Kolor | Yellow / Red |
| Liczba Pól | 3 |
| Obudowa | MF10 |
| Prąd znamionowy (600V) | 60 A |
| Rozmiar przewodu (Tylko Cu) | 8-1/0 AWG |
| Waga (lb/kg) | 5,29 / 2,4 |
Mittapiirustus
