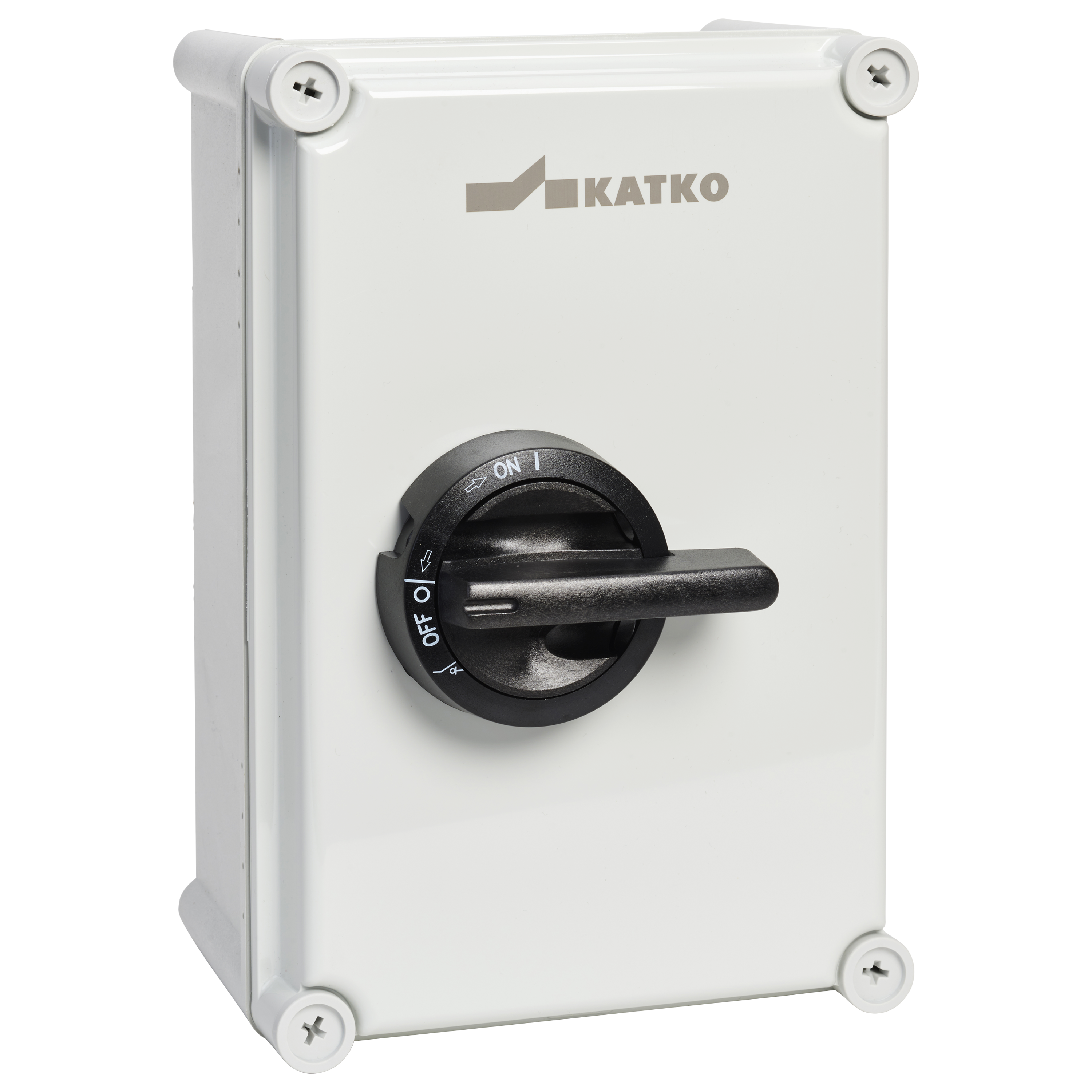

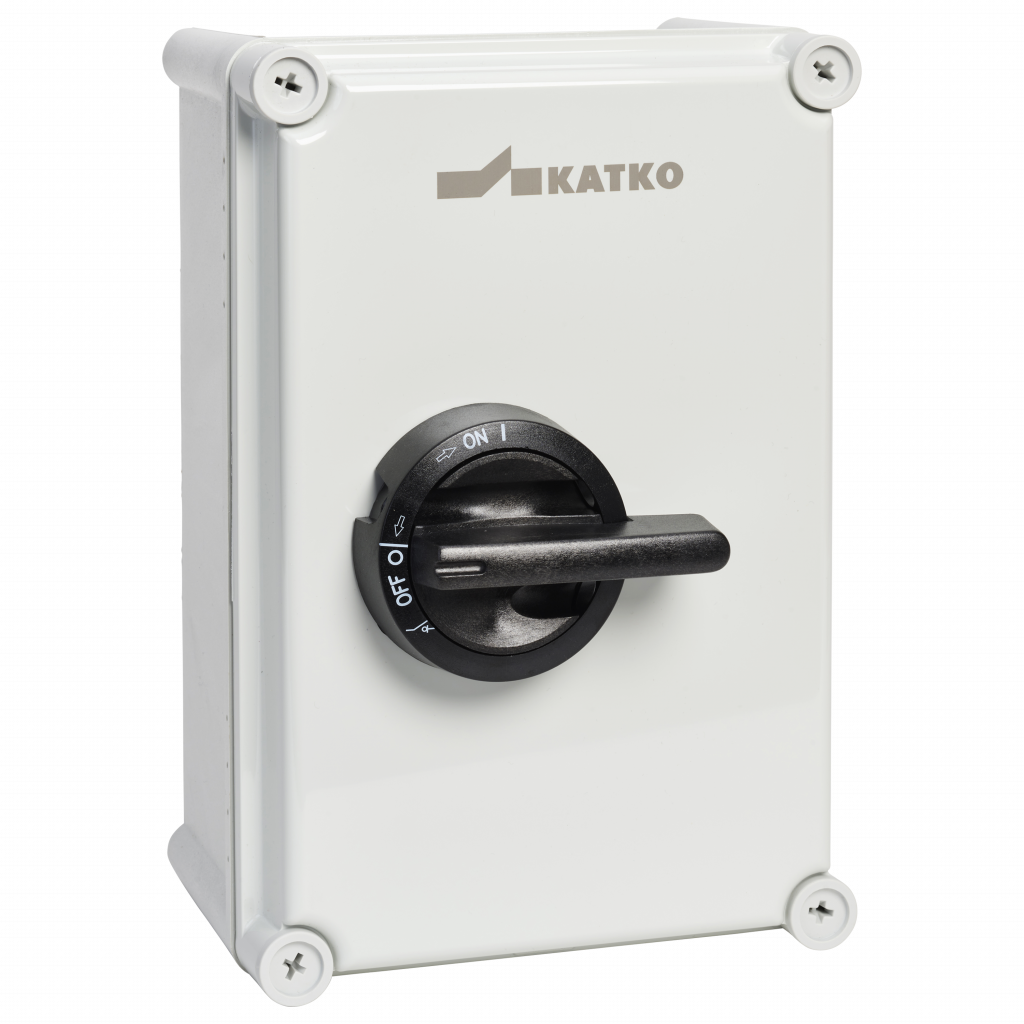

Katko UL98 listed enclosed disconnects (60-400A) are engineered for applications requiring the highest level of disconnect performance under UL standards. They are designed for high-performance switching and long-term reliability.
Used in industrial and commercial power systems, these disconnects ensure safe operation where strict compliance and durability are essential.
GTIN
Ampere rating 600V
Enclosure type
Enclosure
Technical data
Ampere rating 600V
60.0
Depth
130 mm
EMC
false
Enclosure
MF10 (188 x 280 x 130 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
GTIN
6419410315606
Height
280 mm
HP 208V
1.5
HP 240V
20.0
HP 480V
40.0
HP 600V
60.0
Long product name
UL98-listed, 3-pole, Polycarbonate enclosure; W188 x H280 x D171
Net weight
2.1329 kg
Number of poles
3
Product type

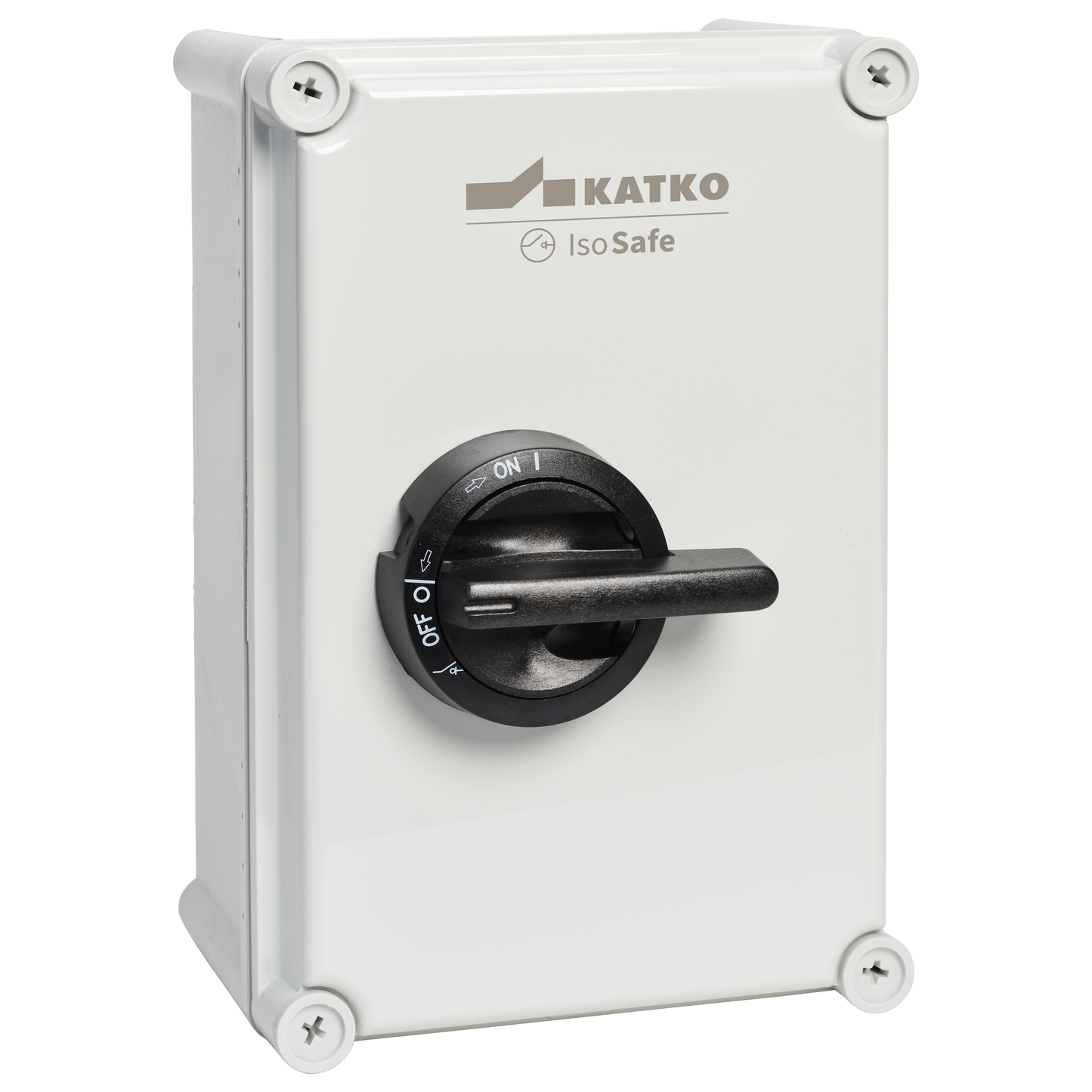

KEM 360UL98 MF10
Short product description
Manual motor controller 3x60A
Technical name
3x40A 400V 22kW
UL
UL98
Volume
6.8432 l
Width
188 mm
Wire size Cu
8-1/0 AWG
Dimensional drawing
Logistical data
Package size 1 depth
200 mm
Package size 1 GTIN code
6419410343968
Package size 1 height
800 mm
Package size 1 volume
96 l
Package size 1 weight
33.1515 kg
Package size 1 width
600 mm
Downloadables
- Dimensional drawings media (cc20568c431f2628b050995ff79bb566ee462ecb_IsoSafe_MF10_Dim.png)
- Connection diagram media (68c2b8b6e860e34cab19322bd966411e0e41389f_KATKO_KU3P_diagram.jpg)
- Brochures (6379e76fa5ee33ff60767c9781ca3ebaada6c217_KATKO_IsoSafe_catalogue_102024_en.pdf)
- Brochures (88bc9d1eaaa50e840fe66815236a2d4c16fce617_KATKO_IsoSafe_catalogue_082022_fi.pdf)
- Brochures (86a395c9341799e90f45174a6e4861db77624a97_KATKO_IsoSafe_catalogue_012025_pl.pdf)
- Brochures (3a547d77c67d61f5617637b9dd0f2f7f8136a7d8_KATKO_IsoSafe_UL_listed_selection_brochure_092024_en.pdf)
- Brochures (4a3041d4b8ee0f0877bb8cd2a41fd285d30276ff_KATKO_IsoSafe_UL98_brochure_062025_en.pdf)
- STEP files (ec128355361b26875db35f37c3bcadbc58e87dda_IsoSafe_MF10.zip)
- DWG files (baa69aafa87fac7e53ac8d3d093d1c178feebf42_IsoSafe_MF10_LK10.zip)
- DWG files (740129dd707255158ba2f07d33771d6ccb09b88d_IsoSafe_MF10_LK11.zip)
