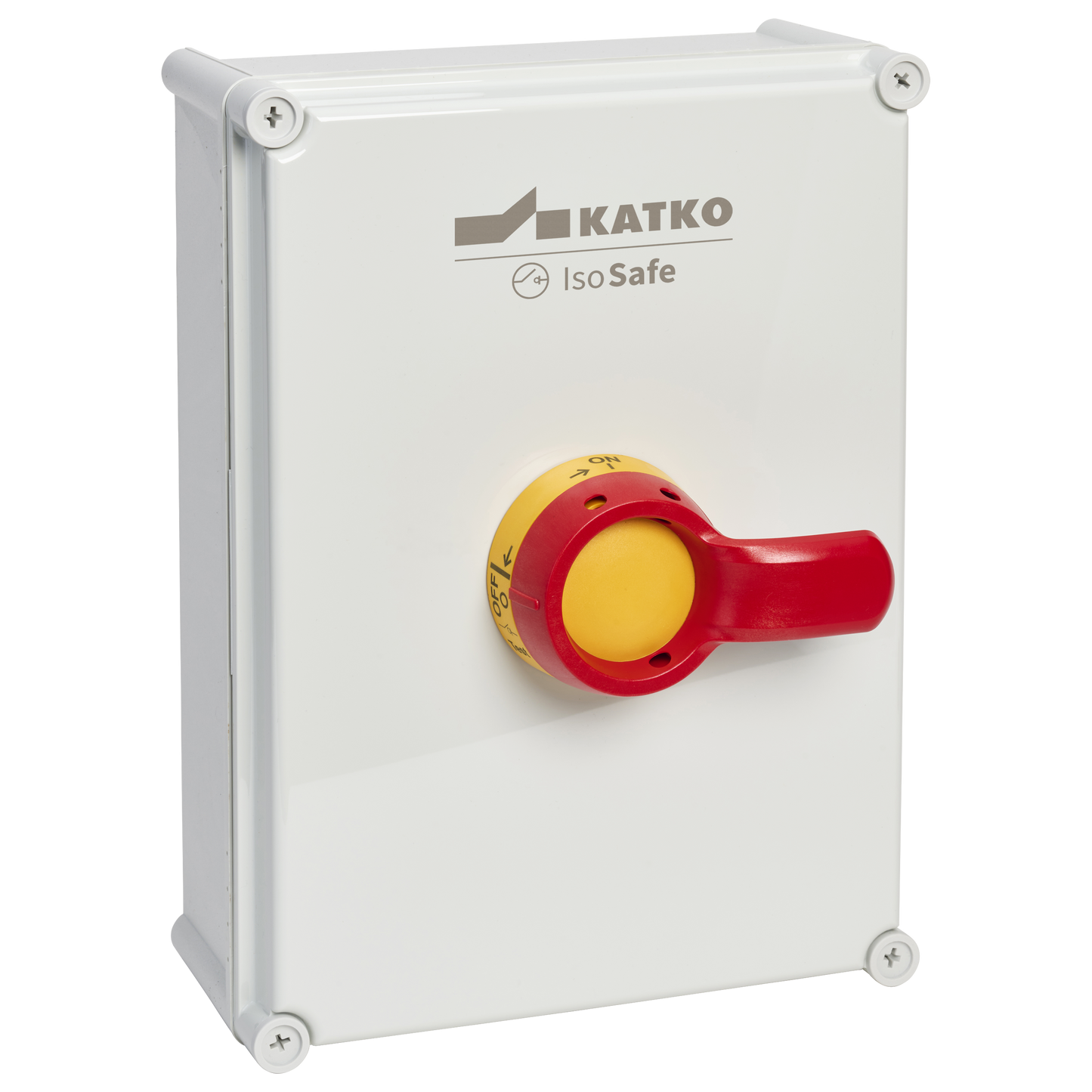

KEM 3200C YR MF11

Isolating switch 3x200A IP66

KEM 3200C YR MF11

Katko IsoSafe polycarbonate enclosed safety switches are designed for real-world applications where safety and reliability are essential, from demanding industrial environments to ordinary buildings. The durable polycarbonate enclosure provides high protection and excellent insulation while resisting UV radiation and many chemicals, ensuring reliable performance both indoors and outdoors.

Advanced safety features, including self-extinguishing materials, secure door interlocking defeat mechanisms and a padlockable handle, support safe operation and maintenance. Designed and manufactured in Finland, IsoSafe switches reflect decades of application-driven engineering and are trusted in installations where dependable electrical distribution is critical.

GTIN
6419410323823
Rated operational current AC-23A 415V (A)
200
Enclosure type
Polycarbonate
Enclosure
MF11 (280 x 380 x 130 mm)
Pokaż kompletne dane

Product details and documents

Technical data

Depth
130 mm
EMC
false
Enclosure
MF11 (280 x 380 x 130 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
GTIN
6419410323823
Height
380 mm
IP rating
IP66
Long product name
3-pole, Yellow-red handle, Polycarbonate enclosure; W280 x H380 x D130
Max. term. torque (Nm)
15..22
Mech. endurance (no. of oper.)
16000
Net weight
3.8931 kg
Nom. values w/cable size (mm²)
95
Number of poles
3
Product type
KEM 3200C YR MF11
Rated breaking cap. ICN AC-23A 415V (A)
1600
Rated fused short-ckt current back-up fuse opt 1 (A)
250
Rated fused short-ckt current peak value (kA)
22
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
1000
Rated operational current AC-21A 415V (A)
200
Rated operational current AC-21A 500V (A)
200
Rated operational current AC-21A 690V (A)
200
Rated operational current AC-22A 415V (A)
200
Rated operational current AC-23A 415V (A)
200
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
110
Rated short-ckt. making cap. Icm 415V (kA)
11.4
Rated short-time withstand current 1s Icw 415V (kA)
6.5
Rated therm. current Ithe (A)
200
Rated therm. current Ith (A)
200
Short product description
Isolating switch 3x200A IP66
Switch type
Load Break Switch
Technical name
3x200A 400V 110kW
Terminals bolt size (Cu mm²)
M8
Volume
13.832 l
Width
280 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
79.5 mm
Package size 1 GTIN code
6419410279861
Package size 1 height
158.5 mm
Package size 1 volume
1.3105 l
Package size 1 weight
1.0674 kg
Package size 1 width
104 mm
Sales unit
1
