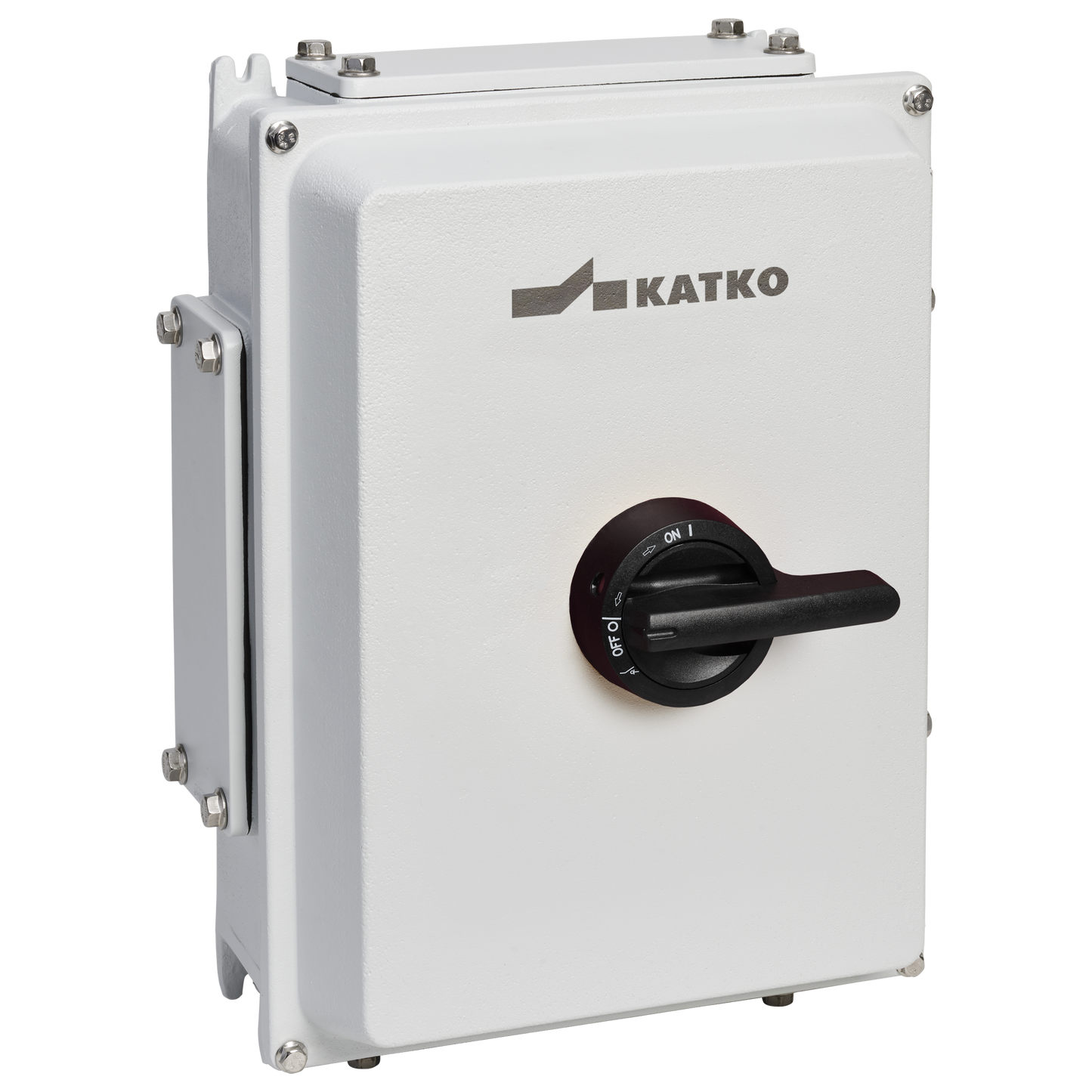

KEA 6100 A5

Isolating switch 6x100A IP65

KEA 6100 A5

Katko’s IsoSafe aluminium enclosed isolators are designed for demanding industrial and outdoor applications where durability, safety and reliable performance are essential. The robust aluminium enclosure provides lasting protection against weather, corrosion and mechanical stress, supporting reliable operation in challenging environments.

High-quality surface treatments enhance resistance to UV radiation, chemicals and wear, contributing to long service life in outdoor installations. Integrated safety features, including a secure door interlocking defeat mechanism and padlockable operation, help prevent unintended use and enable safe operation and maintenance. Solid construction and clean, functional design ensure consistent performance day after day.

Designed and manufactured in Finland, IsoSafe aluminium isolators reflect decades of application-driven engineering and long-term thinking. Built to meet international standards, the range is trusted in installations where failure is not an option and supports safe, sustainable and future-proof electrical distribution solutions for critical systems worldwide.

GTIN
6419410315361
Rated operational current AC-23A 415V (A)
100
Enclosure type
Aluminium
Enclosure
A5 (300 x 400 x 170 mm)

Looking for more information about this product?

Our team is here to help.

Pokaż kompletne dane

Product details and documents

Technical data

Depth
170 mm
EMC
false
Enclosure
A5 (300 x 400 x 170 mm)
Enclosure type
Aluminium
ETIM Class
EC000216
GTIN
6419410315361
Height
400 mm
IP rating
IP65
Long product name
6-pole, Aluminum enclosure; W300 x H400 x D170
Max. term. torque (Nm)
6
Mech. endurance (no. of oper.)
16000
Net weight
9.6811 kg
Nom. values w/cable size (mm²)
70
Number of poles
6
Product type
KEA 6100 A5
Rated breaking cap. ICN AC-23A 415V (A)
640
Rated breaking cap. ICN AC-23A 500V (A)
504
Rated breaking cap. ICN AC-23A 690V (A)
504
Rated fused short-ckt current back-up fuse opt 1 (A)
160
Rated fused short-ckt current peak value (kA)
15
Rated fused short-ckt current RMS Ik opt 1 (kA)
65
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
125
Rated operational current AC-21A 500V (A)
125
Rated operational current AC-21A 690V (A)
125
Rated operational current AC-22A 415V (A)
100
Rated operational current AC-22A 500V (A)
100
Rated operational current AC-22A 690V (A)
100
Rated operational current AC-23A 415V (A)
100
Rated operational current AC-23A 500V (A)
63
Rated operational current AC-23A 690V (A)
63
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
55
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
37
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
55
Rated short-ckt. making cap. Icm 690V (kA)
8
Rated short-time withstand current 1s Icw 690V (kA)
5
Rated therm. current Ithe (A)
125
Rated therm. current Ith (A)
125
Short product description
Isolating switch 6x100A IP65
Switch type
Load Break Switch
Technical name
6x100A 400V 55kW
Terminals bolt size (Cu mm²)
6..70
Volume
20.4 l
Width
300 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
130 mm
Package size 1 GTIN code
6419410315361
Package size 1 height
380 mm
Package size 1 volume
13.832 l
Package size 1 weight
9.6811 kg
Package size 1 width
280 mm
Sales unit
1
