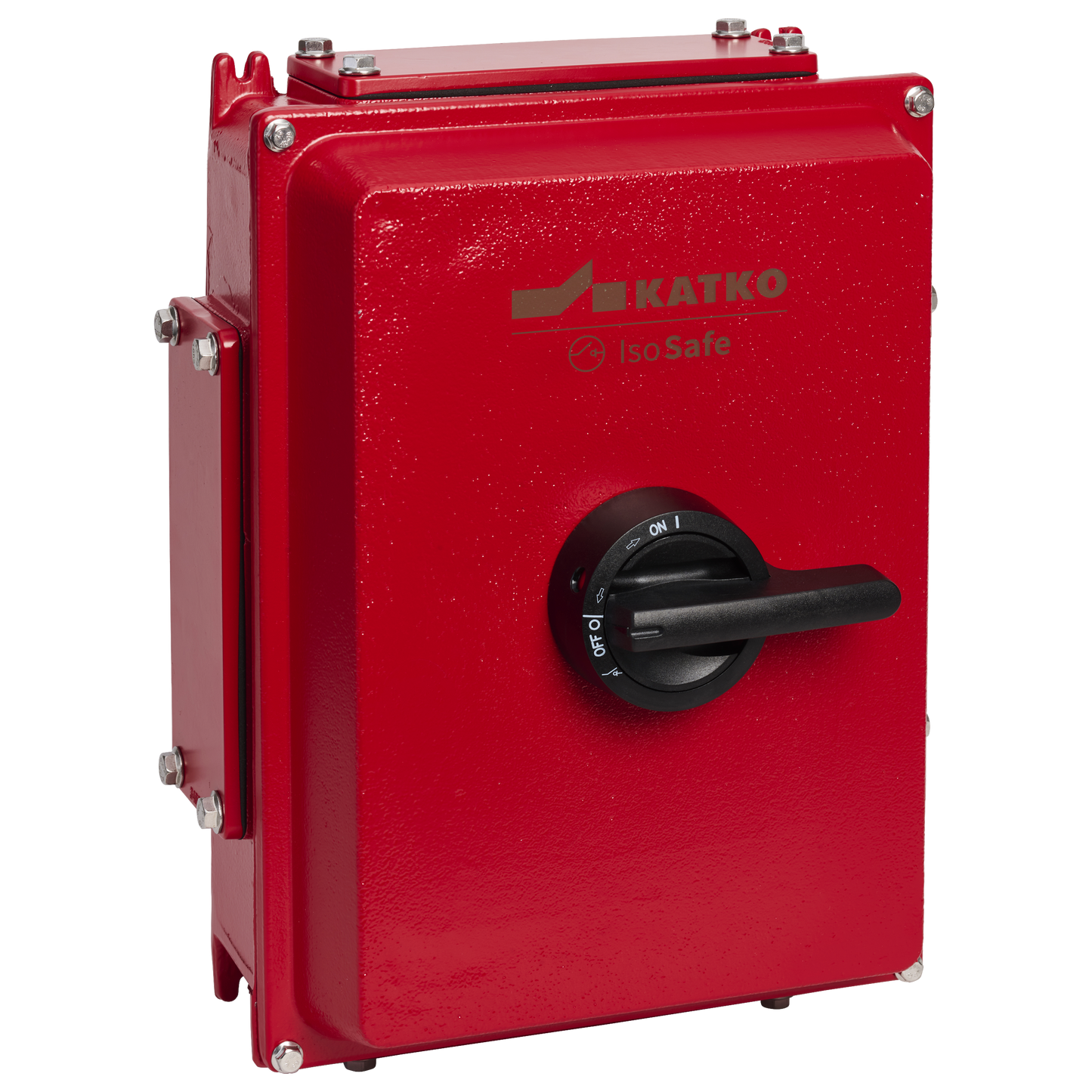

KEA 3160 FR1V A5EMC 2XM40MEMC M16M
Isolating switch EMC F200 3x135A IP65 1NO/1NCKEA 3160 FR1V A5EMC 2XM40MEMC M16M
Katko firerated isolators (16-800A) are designed to maintain circuit integrity and isolation functionality even under fire exposure. They support safety-critical installations where continued performance during extreme conditions is required.
Built with durable materials and tested to meet relevant fire performance standards, they provide dependable isolation for public buildings, infrastructure, and industrial facilities.
E-number FI
GTIN
Rated operational current AC-23A 415V (A)
Enclosure type
Enclosure
Firerated
Mounted auxiliary contacts
Technical data
Cable entries
2 x M40 (19,0-28,0 mm), metal EMC; 1 x M16 (5,0-10,0 mm), metal
Depth
170 mm
EMC
true
Enclosure
A5 (300 x 400 x 170 mm)
Enclosure type
Aluminium
ETIM Class
EC000216
E-number FI
3609600
Firerated
F200
GTIN
6419410332689
Height
400 mm
IP rating
IP65
Long product name
3-pole, Auxiliary contact 1NO/1NC, Heat-resistant; F200 200°C/3h EN 12101-3, Aluminum enclosure; W300 x H400 x D170,EMC shielded, Cable entries: 2 x M40 (19,0-28,0 mm), metal EMC; 1 x M16 (5,0-10,0 mm), metal
Mounted auxiliary contacts
1NO/1NC
Net weight
9.6593 kg
Number of poles
3
Product type
KEA 3160 FR1V A5EMC 2XM40MEMC M16M
Rated operational current AC-23A 415V (A)
135
Short product description
Isolating switch EMC F200 3x135A IP65 1NO/1NC
Switch type
Load Break Switch
Technical name
3x160A 400V 90kW
Volume
20.4 l
Width
300 mm
Dimensional drawing
Logistical data
Package size 1
1
Package size 1 GTIN code
6419410332689
Package size 1 weight
9.6593 kg
Sales unit
1
Downloadables
- Dimensional drawings media (IsoSafe_A5_Dim.png)
- Connection diagram media (KATKO_KU3P_1V_diagram.jpg)
- Brochures (Katko IsoSafe Catalogue - Safety Switches & Isolators)
- Brochures (Katko IsoSafe Tuoteluettelo - Turvakytkimet FI)
- Brochures (Katalog Wyrobów KATKO IsoSafe – Wyłączniki bezpieczeństwa i rozłączniki PL)
- STEP files (IsoSafe_A5.zip)
- DWG files (IsoSafe_A5_LK12.zip)
